Shield Case Fitting

Insertion guides improve shield case installation

Pinprick shape of contact points increase staying power of shield case

Small form factor results in reduced mounting area

Height:

1.7 max. mm

Operating Temperature:

-40 to 85℃ (233 to 358 K)

Downloads

Catalogs
- - CATALOG SC-17 E
  - File:

    Product Matrix
2D Drawings
- - - 2D SC-17 3394
3D Models
- STEP
  SC-17 STEP
- IGES
  SC-17 IGES

Specs & Test Reports
- Product Specification
  PRODSPEC SC-17 PRS-2438
- Test Reports
  TEST-REPORT SC-17 TR-17096
- Packing Standard
  PACKING SC-17 PST-17094
PCB/FPC Data
- Symbols & Footprints
  Symbols and footprints may be downloaded from an external site, SnapMagic.

*SI Test Boards data are under 2D Drawings

Product Details
Specifications Spec.
Part Number

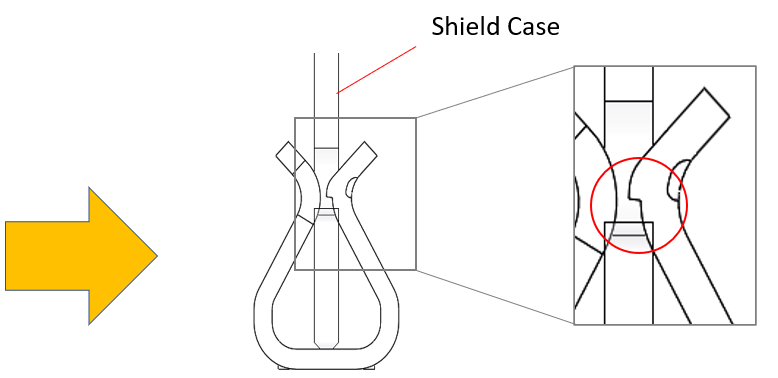

Insertion guides improve shield case installation

	Shield Case	Allowable misalignment of ±0.26 mm

Pinprick shape of contact points increase staying power of shield case

	Pimple
		"Pimples" secure the shield case

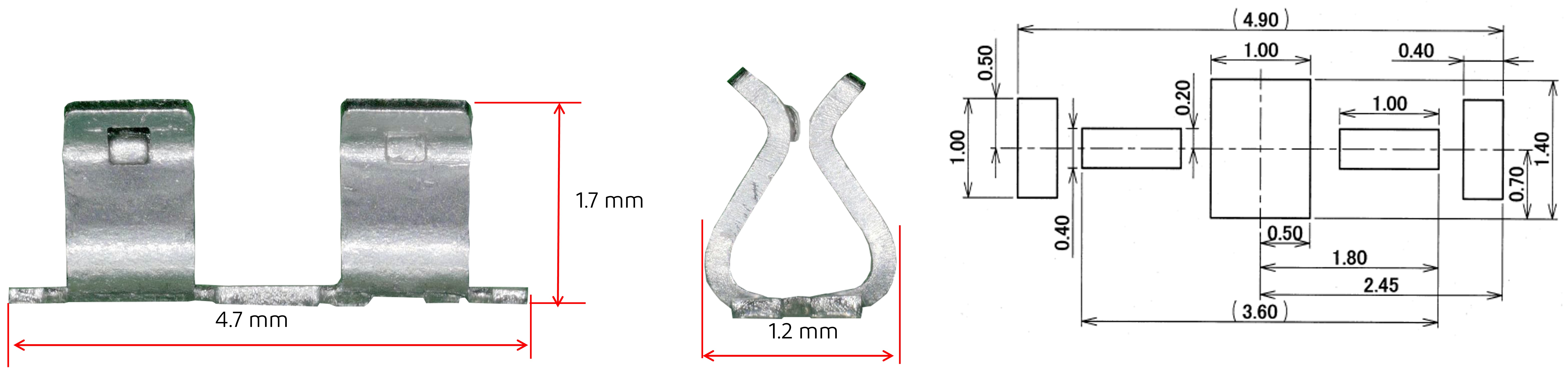

Small form factor results in reduced mounting area

Small form factor results in reduced mounting area

Product Type	Anchor Clip
Height	1.7 max. mm
Operating Temperature	-40 to 85℃ (233 to 358 K)
Shielded FPC / FFC	No
Mating Force	29.5 N max.
Mechanical lock	No
Un-Mating Force	8 N min.

SC-17 RECOMMENDED PART NUMBERS

Part Number Description	Part Number	Weight (mg)	Note
SC-17	3394-0001	14
