Cable Jumper Solution with CABLINE®-CA IIP PLUS Micro-Coaxial Connector

I-PEX is an expert at producing ultra small connectors for high-speed transmission.
I-PEX offers CABLINE®-CA IIP PLUS low-profile connecter with jumper cables employing our paddle card technology for card-to-card and card-to-board connection of DPU supporting PCIe Gen5.0.



Product Features

CABLINE®-CA IIP PLUS supports high-speed transmission 64 Gbps/lane PAM4 using paddle card technology.
It is a low profile connector at the maximum height of 1.3 mm, ideal for space-constrained applications.
ZenShield® technology with full-shield cover achieves excellent performance, and provides superior EMC.

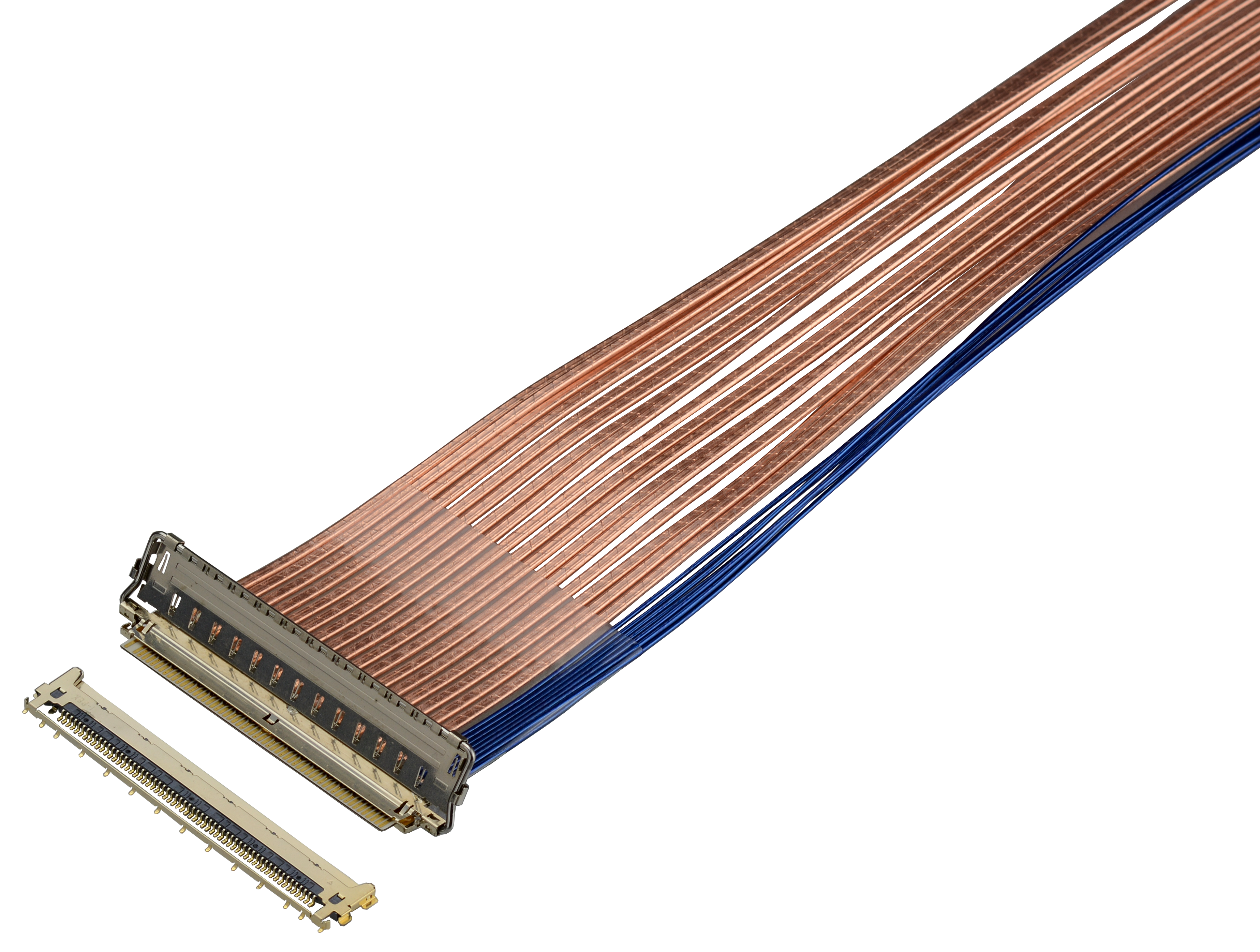

CABLINE®-CA IIP PLUS

I-PEX provides jumper harness solution called LEAPWIRE®.
It is applicable for both Twinax cable and micro-coaxial cable.
In comparison to CABLINE®-CA II PLUS, CABLINE®-CA IIP PLUS enables connection in extended distance.

CABLINE®-CA IIP PLUS with Paddle Card can be assembled with AWG34 of Twinax cable which improves signal integrity, while CABLINE®-CA II PLUS is assembled with AWG38 of micro-coaxial cable.
This difference enables CABLINE®-CA IIP PLUS have longer distance of cable.

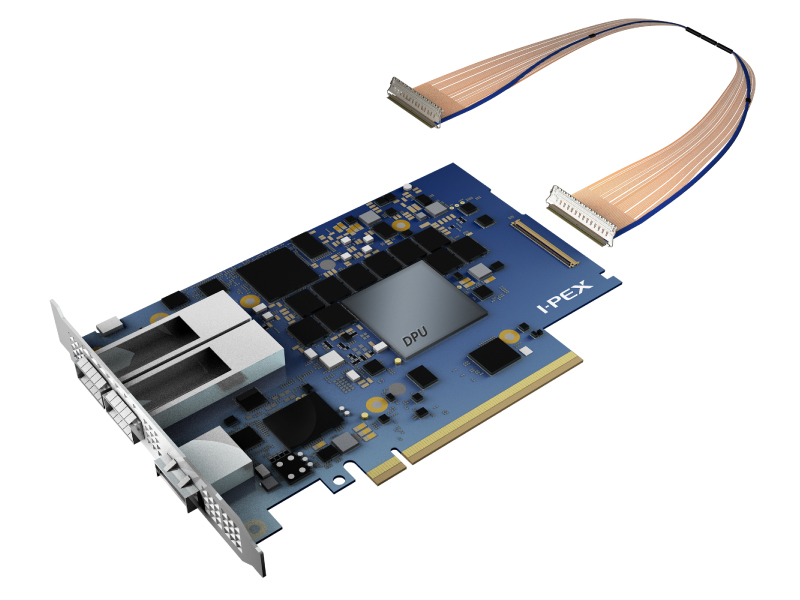

Internal connection using CABLINE®-CA IIP PLUS on DPU



Product Specifications

Mating type

Horizontal
Pitch

1.20 mm (differential pair)
*0.40 mm (signal contacts)
Pin count 60 pin (19 differential pair)
Height 1.14 mm Nom.  1.30 mm Max
Depth 8.20 mm
Width 30.95 mm
Operating Temperature -40℃ ～ 85℃
Recommended  receptacle

CABLINE®-CA II PLUS Receptacle
(PN: 20790-060E-01/-02)

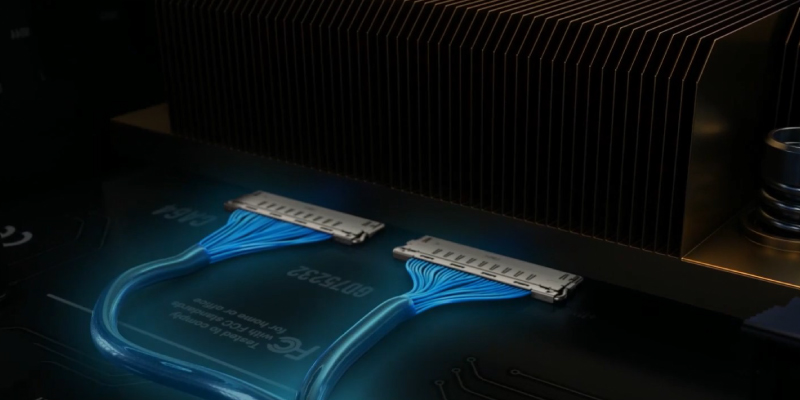

The height of CABLINE®-CA IIP PLUS is 1.30 mm, and it is a low profile connector which can be placed below a heatsink.




Reference Data for Transmission Characteristic

Test condition

  • Plug: CABLINE®-CA IIP PLUS paddle card harness
  • Cable: Test sample 1: L=390 mm (Twinax cable #34 differential 85 ohm)
                Test sample 2: L=165 mm (micro-coaxial #38 differential 85 ohm)
  • Receptacle: CABLINE®-CA II PLUS receptacle assembly
testsample1
Test sample 1
L=390 mm
(Twinax cable #34,
differential 85 ohm)
testsample2
Test sample 2
L=165 mm
(Micro-coaxial #38,
single-ended 42.5 ohm)​​​
CABCAIIPPLUStestcondition1 CABCAIIPPLUStestcondition2



Test results with test sample 1

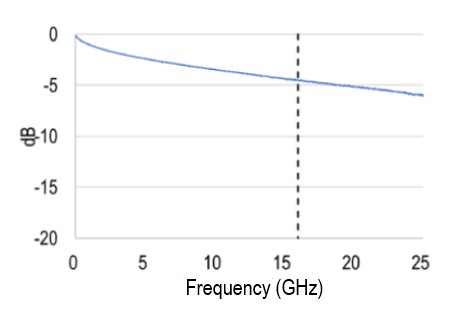

Insertion Loss

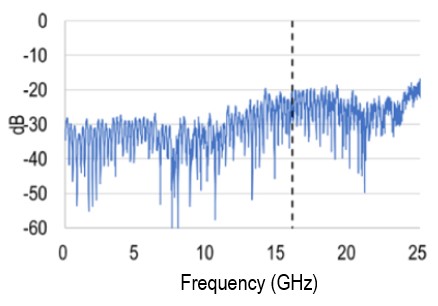

Return Loss
Frequency_graph01.jpg Frequency_graph02.jpg
Minimum value up to 16GHz
Unit: dB
Maximum value up to 16GHz
Unit: dB
-4.522
-19.596

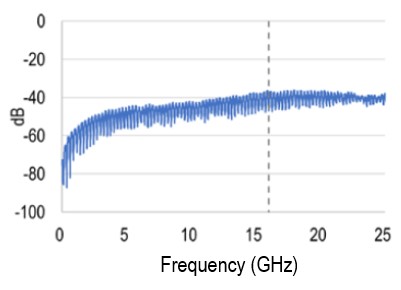

Near End Cross Talk

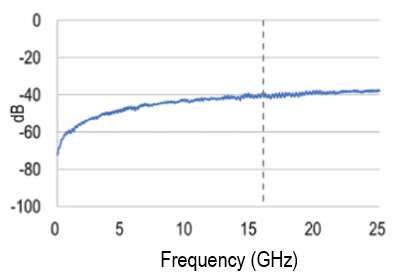

Far End Cross Talk
Frequency_graph03.jpg Frequency_graph04.jpg
Minimum value up to 16GHz
Unit: dB
Maximum value up to 16GHz
Unit: dB
-36.276
-39.257

Test results with test sample 2

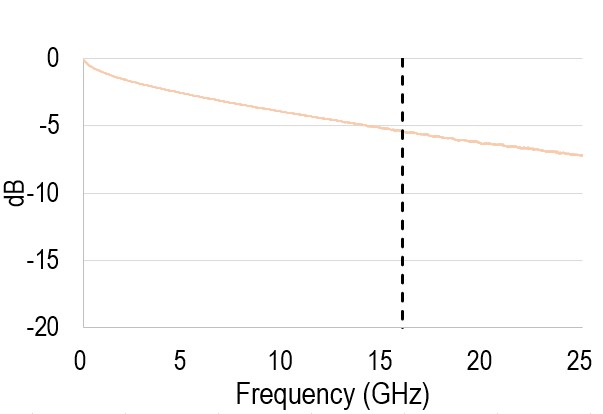

Insertion Loss

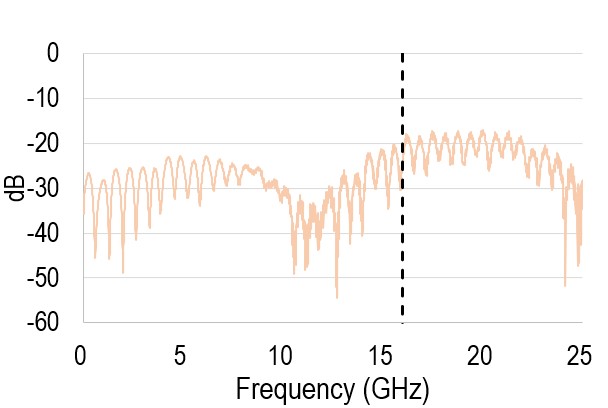

Return Loss


Minimum value up to 16GHz
Unit: dB
Maximum value up to 16GHz
Unit: dB
-5.427
-20.144

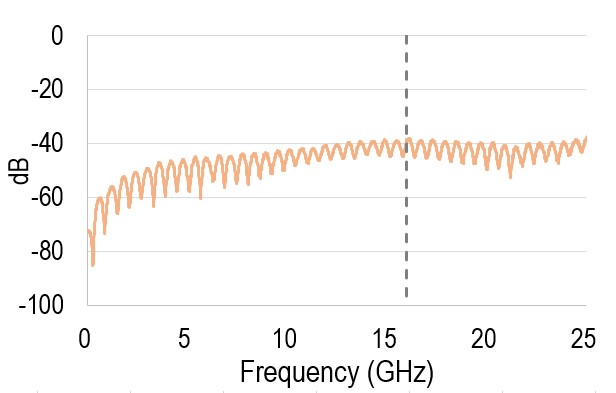

Near End Cross Talk

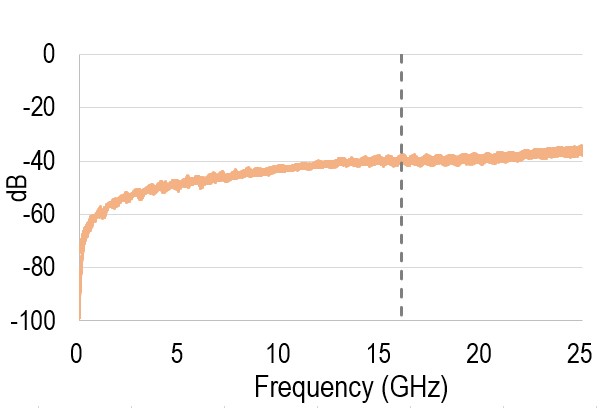

Far End Cross Talk
graph03.jpg graph04.jpg
Minimum value up to 16GHz
Unit: dB
Maximum value up to 16GHz
Unit: dB
-38.407
-40.104









Please CONTACT US for any inquiries.















I-PEX has developed the following products for the enterprise computing market:

Product
Name
MEZZTRACKTM
DUALINE® 195-HB
DUALINE® 110-VB-M
DUALINE® 130-HB-D
CABLINE®-CAP Harness
CABLINE®-CA IIP PLUS Harness

Product
MEZZTRACK
DUALINE195
DUALINE110
DUALINE130
CABLINECAP
CABLINECAIIP
Style
Board-to-Board
Ｗire-to-Board
Ｗire-to-Board
Ｗire-to-Board
Ｗire-to-Board
Ｗire-to-Board
Mating Direction
Vertical
Horizontal
Vertical
Horizontal
Horizontal
Horizontal



These products are currently in the prototype stage except CABLINE®-CAP Harness.
Please note that product specifications are subject to change.
