MHF®-SW23
RF 開關接頭，2.3 x 2.3 mm 封裝尺寸，支持可達 11 GHz.
2.3 x 2.3 mm 優秀的檢驗連接器，應用於車載天線的射頻模組
防污染設計可防止損壞

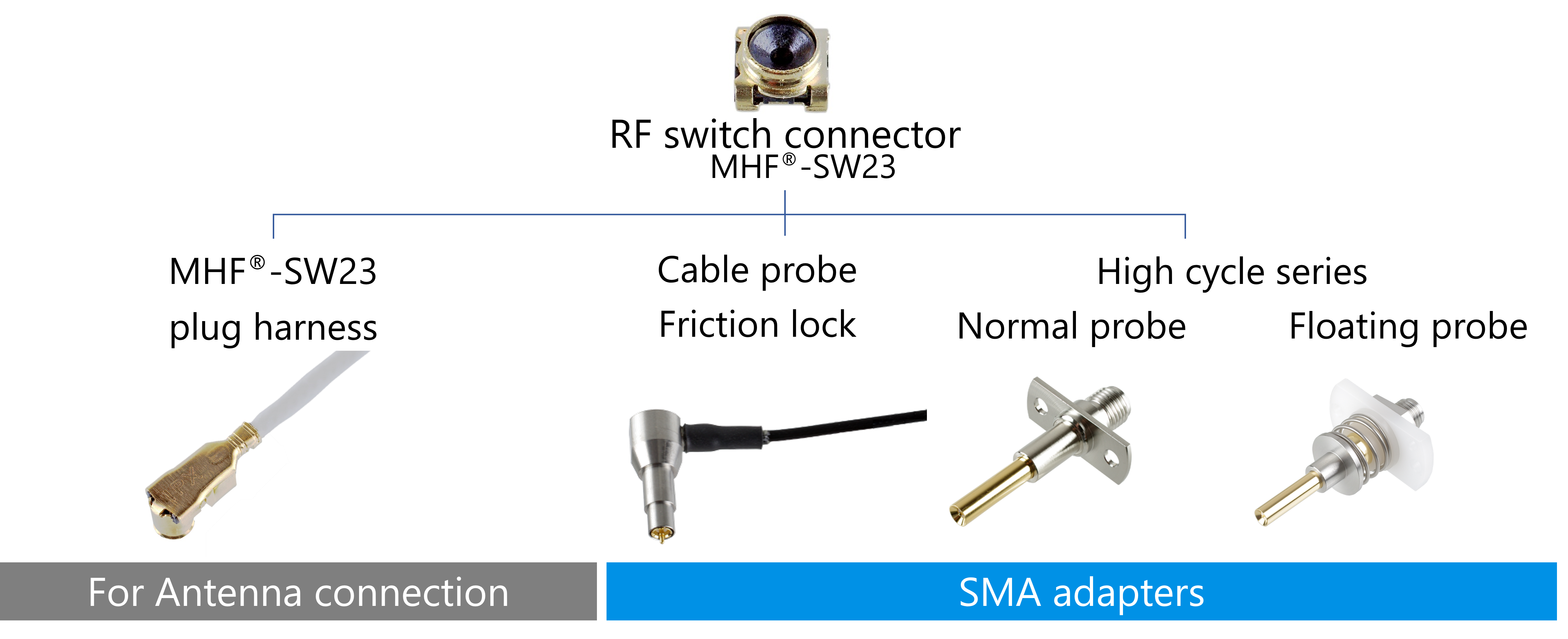

各種檢查探頭可供選擇
*與用於外部天線的 MHF®-SW23 射頻開關相容的插頭，請查看 MHF®-SW23 插頭。
*提供了一段展示可選擇板載天線或外部天線之靈活性的解決方案影片。
Mated Height:
1.35 mm max.
下載
-
Specs & Test Reports
-
PCB/FPC Data
-
Symbols(腳位圖)和Footprints(封裝圖)
-
-
2.3 x 2.3 mm 優秀的檢驗連接器，應用於車載天線的射頻模組
防污染設計可防止損壞
各種檢查探頭可供選擇
| Product Type | RF switch
|
| Mated Height | 1.35 mm max.
|
| Depth | 2.3 mm
|
| Width | 2.3 mm
|
| SMT Size | 2.3 x 2.3 mm
|
| Frequency Range | Up to 11 GHz |
| Operating Temperature | |
| V.S.W.R. | DC to 2.5 GHz: 1.2 max.2.5 to 6 GHz: 1.3 max.6 to 11 GHz: 1.5 max.
|
| Applicable Standards (Reference Only) | 5G sub6Wi-FiLTE / LTE-AdvancedLPWABluetoothGPS
|
| Full EMI Shielding (ZenShield®) | No
|
| Mechanical Lock | No
|
| VSWR | DC ~ 2.5 GHz : 1.2 max. 2.5 ~ 6 GHz : 1.3 max. 6 ~ 11 GHz : 1.5 max. |
推薦料號
若清單中查詢不到您要找的料號，請使用調查表詢問。
MHF-SW23 RECOMMENDED PART NUMBERS
| Part Number Description | Part Number | Weight (mg) |
| MHF-SW23 RF inspection switch | 20549-001E | 13.388 |
其他料號
請注意:此清單可能包含了還沒有可用樣品的產品和不再銷售的型號。
如您有新的詢價，請參考上述推薦的料號。
MHF-SW23 OTHER PART NUMBERS
| Part Number Description | Part Number | Weight (mg) |
| MHF-SW23 RF inspection switch | 20549-001E-01 | 13.388 |
MHF-SW23 ACCESSORIES PART NUMBERS
| Part Number Description | Part Number | Weight (mg) | Image |
| MHF-SW23 manual probe friction-lock L=300mm | 90582-0300 | 5710 |  |
| MHF-SW23 manual probe friction-lock L=400mm | 90582-0400 | 6200 | |
| MHF-SW23 high cycle probe without-floating | 90604-0001 | 4250 |  |
| MHF-SW23 high cycle probe floating-type | 90605-0001 | 9310 |  |
SI Test Board with 2.92mm Adapter
| Part Number Description | Part Number | Weight (mg) | Image |
| SI Test Board for MHF-SW23 | 91607-001B-001 | 15677 |
Main Board
Thru Board |
Adapters for MHF Switch
For MHF® switch inspection, we provide three types to suit different applications, such as a cable probe (friction lock) and two high-cycle probes (standard and floating).
| Type | Cable probe | High cycle series | |
| Friction lock | Standard probe | Floating probe | |
| Appearance (Reference) |
 |
 |
 |
| Durability (cycles) |
1,000 | 10,000 | 200,000 |
| MHF®-SW23 | 90582-0300 (Cable: 300 mm) 90582-0400 (Cable: 400 mm) |
90604-0001 | 90605-0001 |
SI Test board for signal integrity performance measurement
Signal Integrity testing, measures and analyzes the extent to which high-speed signals maintain their integrity when transmitted through a connector.
