MHF®-SW23 PLUG

極細RF同軸線公座，搭配MHF-SW 23 RF開關PCB母座

    可靈活選擇主機板天線或外接天線

    與 MHF®-SW23 RF 開關連接器配接的較低成本選項。
    *MHF-SW23

    適用的線束配置

*提供了一段展示可選擇板載天線或外部天線之靈活性的解決方案影片。
Mated Height:
3.7 mm max.
Operating Temperature:
-40 to 85℃ (233 to 358 K)
Cable Size (Micro-Coaxial):
AWG 32 O.D. 1.13 mm

下載

*SI測試板數據位於2D圖面之下

可靈活選擇主機板天線或外接天線


與 MHF®-SW23 RF 開關連接器配接的較低成本選項。
*MHF-SW23


適用的線束配置


Product Type
RF switch
Mated Height
3.7 mm max.
SMT Size
2.3 x 2.3 mm
Frequency Range Up to 9 GHz
Operating Temperature
-40 to 85℃ (233 to 358 K)
Cable Size (Micro-Coaxial)
AWG 32 O.D. 1.13 mm
V.S.W.R (Plug)
0.3 to 3 GHz: 1.4 max.3 to 6 GHz: 1.6 max.6 to 9 GHz: 2.0 max.
Applicable Standards (Reference Only)
5G sub6Wi-FiLTE / LTE-AdvancedLPWABluetoothGPS
Full EMI Shielding (ZenShield®)
No
Mechanical lock
No
VSWR (Harness only) 0.3 ~ 3 GHz : 1.4 max.
3 ~ 6 GHz : 1.6 max.
6 ~ 9 GHz : 2.0 max.

推薦料號

若清單中查詢不到您要找的料號，請使用調查表詢問。



MHF-SW23 PLUG RECOMMENDED PART NUMBERS

Part Number Description Part Number Weight (mg) Note
MHF-SW23 harness OD=1.13mm Offered as harness only - *see note below
MHF-SW23 RF inspection switch connector 20549-001E 13.388 　

*The MHF-SW23 PLUG is offered as our MHF-SW23 PLUG harness assembly only.
  Please specify harness assembly specification (single-end or double-ended, cable size, length, color).



MHF-SW23 PLUG SAMPLE HARNESS FOR EVALUATION PART NUMBERS

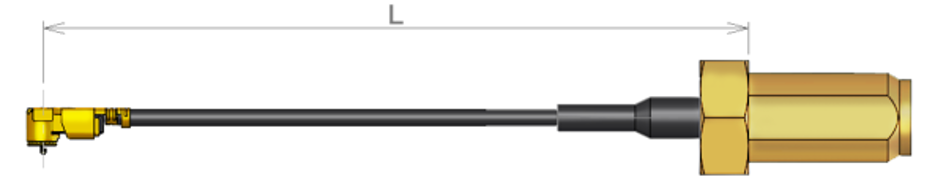

MHF-SW23-SMA JACK OD1.13MM 100MM

Part Number Description Part Number Weight (mg) Note
MHF-SW23-SMA Jack harness OD=1.13mm L=100mm 8-25-0540 - 　
MHF-SW23-SMA Jack harness OD=1.13mm L=150mm 8-25-0541 - 　
MHF-SW23-SMA Jack harness OD=1.13mm L=200mm 8-25-0542 - 　

SI Test Board with 2.92mm Adapter

 Part Number Description Part Number Weight (mg) Image
SI Test Board for MHF-SW23 91607-001B-001 15677

MHF-SW23_SI_TB-1034_Test_Board_(C)

Main Board

MHF-SW23_SI_TB-1034_THRU_Board_(C)
Thru Board
