MHF® 7S
獨特的屏蔽設計 (ZenShield®) 減少5G mmWave應用中不必要的電磁乾擾
超小體積， 最大駐波比為1.5
業內首創：將母座的信號Pin的封裝位於接地環內側
*操作方法請參考「如何嵌合和解除」的影片來處理。
下載
-
產品目錄
-
2D圖面
-
電纜組件
-
O.D. 1.13 mm
Standard orientation
180 degree orientation
-
-
3D STEP & IGES
-
Specs & Test Reports
-
PCB/FPC Data
-
Symbols(腳位圖)和Footprints(封裝圖)
-
-
-
操作手冊
獨特的屏蔽設計 (ZenShield®) 減少5G mmWave應用中不必要的電磁乾擾
| 電場強度分佈(模擬) | |
| MHF® 4L General design |
MHF® 7S High-performance EMI shielding design |
 |
 |

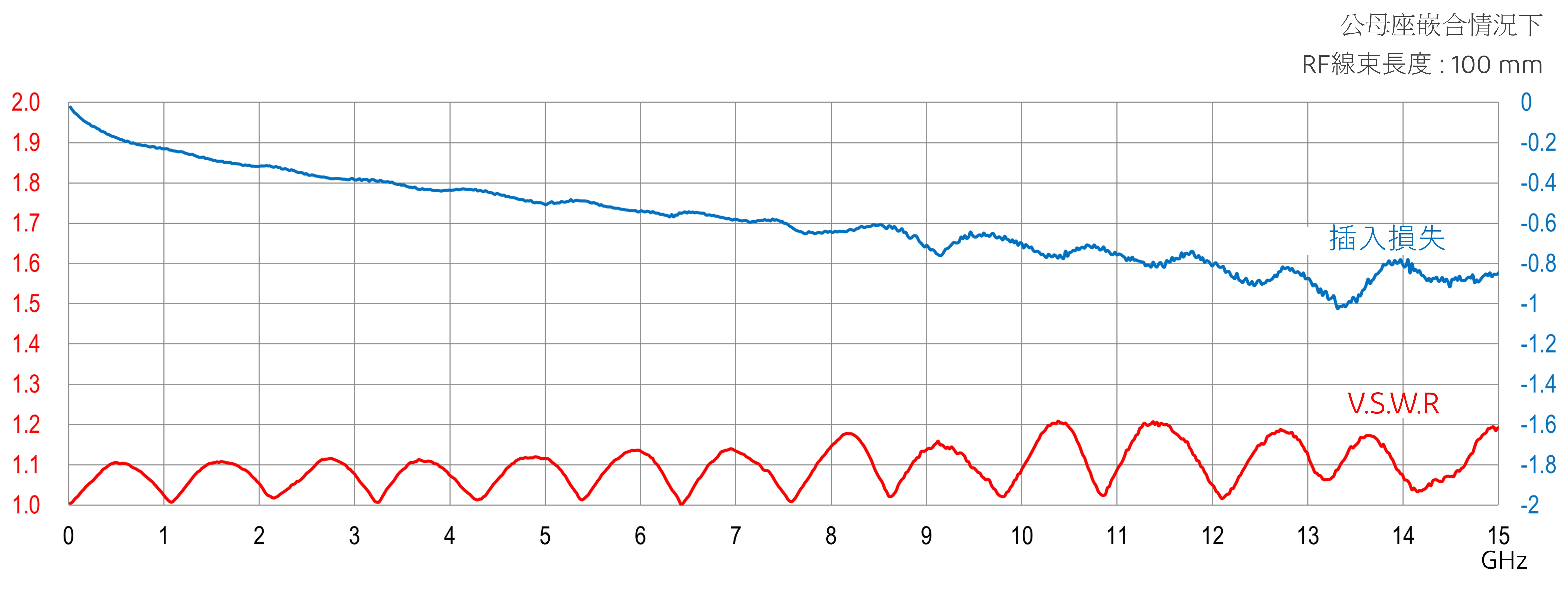

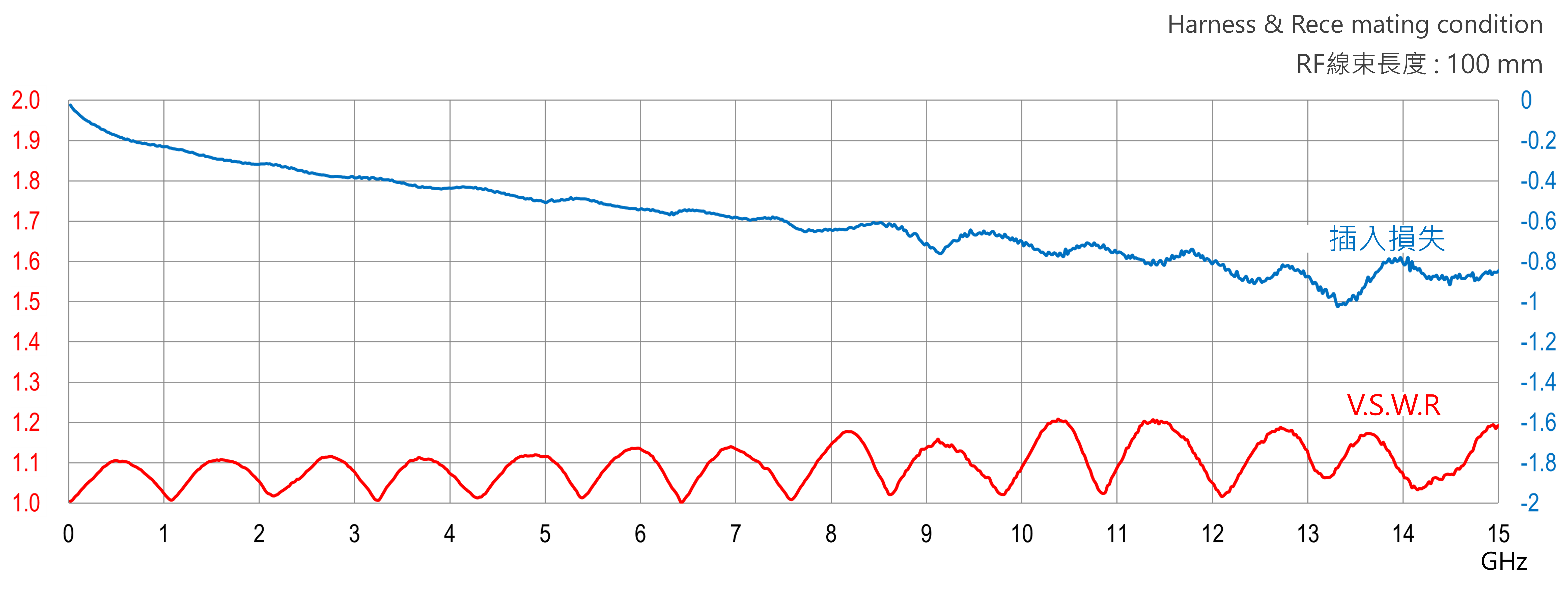

超小體積， 最大駐波比為1.5

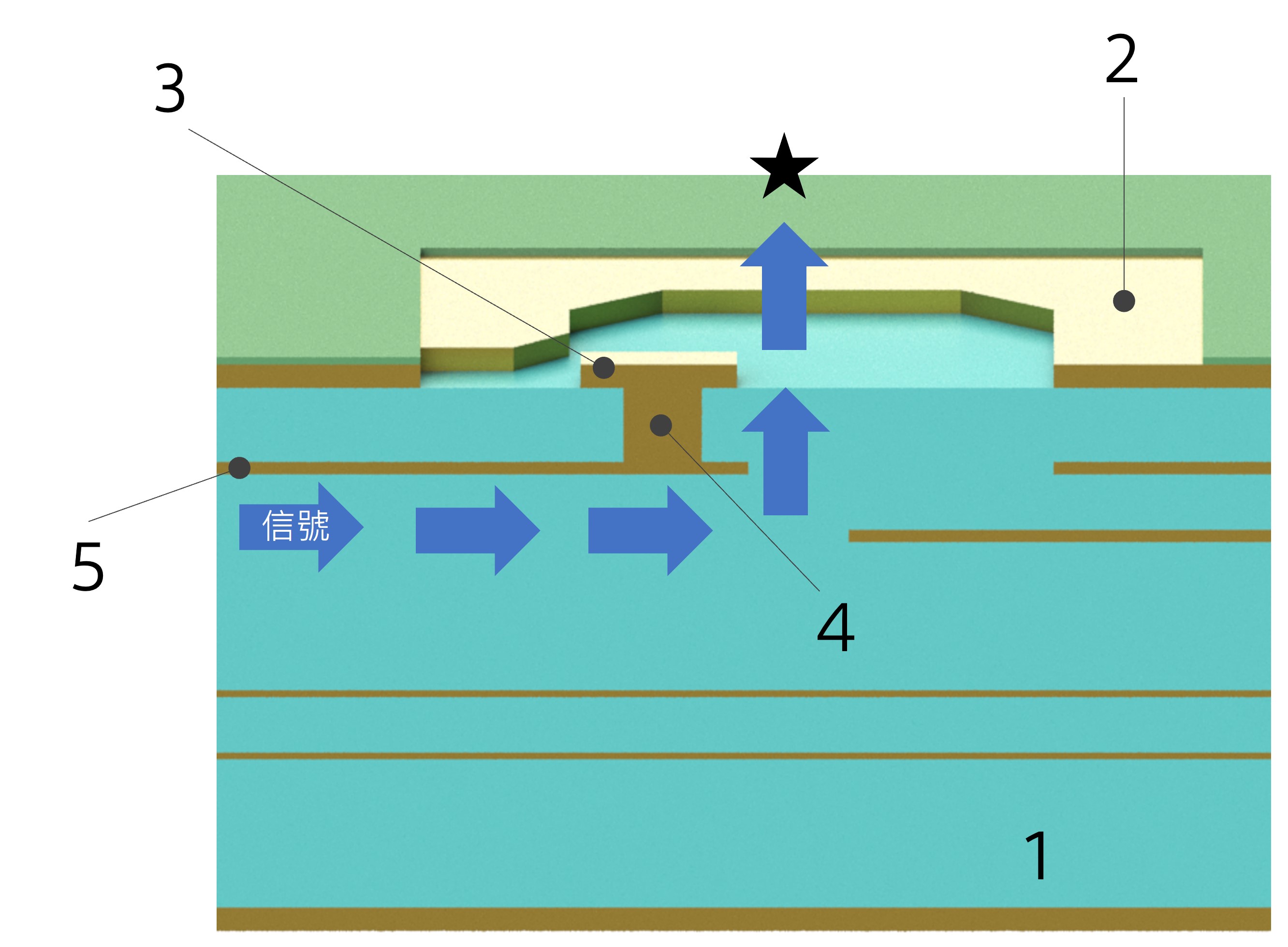

業內首創：將母座的信號Pin的封裝位於接地環內側
1. 信號Pin的封裝位於接地環內側 |
★輸入連接器
|
| Product Type | Coaxial RF Connector
|
| Mated Height | 1.4 mm max.
|
| SMT Size | 2.0 x 2.0 mm
|
| Frequency Range | Up to 15 GHz |
| Operating Temperature | |
| Cable Size (Micro-Coaxial) | AWG 32 O.D. 1.13 mm
|
| V.S.W.R (Plug) | DC to 3 GHz: 1.3 max.3 to 6 GHz: 1.35 max.6 to 9 GHz: 1.4 max.9 to 12 GHz: 1.45 max.12 to 15 GHz: 1.5 max.
|
| Applicable Standards (Reference Only) | 5G mmWave(~15 GHz)5G sub6Wi-FiLTE / LTE-AdvancedLPWABluetoothGPS
|
| Full EMI Shielding (ZenShield®) | Yes
|
| Mechanical Lock | No
|
| VSWR (Harness & Rece) | DC ~ 3 GHz : 1.3 max. 3 ~ 6 GHz : 1.35 max. 6 ~ 9 GHz : 1.4 max. 9 ~ 12 GHz : 1.45 max. 12 ~ 15 GHz : 1.5 max. |
推薦料號
若清單中查詢不到您要找的料號，請使用調查表詢問。
*MHF XX僅以MHF XX 線束的形式銷售
請指定線束組件規格（單端或雙端、電纜尺寸、長度、顏色）。
MHF 7S RECOMMENDED PART NUMBERS
| Part Number Description | Part Number | Weight (mg) | Note |
| MHF 7S harness OD=1.13mm | Offered as harness only | - | *see note below |
| MHF 7S receptacle | 20981-001E-02 | 3.72 |
*The MHF 7S is offered as our MHF 7S harness assembly only.
Please specify harness assembly specification (single-end or double-ended, cable size, length, color).
MHF 7S SAMPLE HARNESS FOR EVALUATION PART NUMBERS
| Part Number Description | Part Number | Weight (mg) |

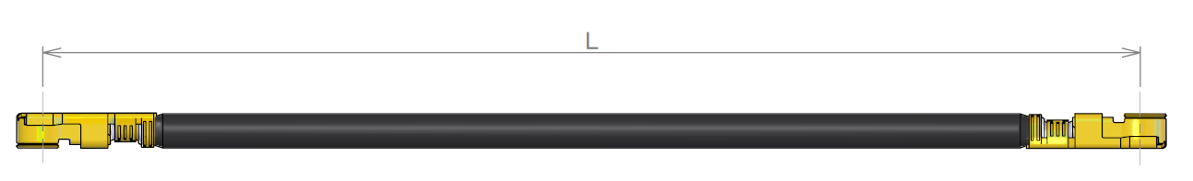

| MHF 7S-7S harness OD=1.13mm L=50mm | 8-24-0162 | 208.5 |
| MHF 7S-7S harness OD=1.13mm L=100mm | 8-22-0127 | 560 |
| MHF 7S-7S harness OD=1.13mm L=150mm | 8-23-0117 | 640 |
| MHF 7S-7S harness OD=1.13mm L=200mm | 8-21-0046 | 780 |
| MHF 7S-7S harness OD=1.13mm L=300mm | 8-26-0059 | 1463 |
| MHF 7S-7S harness OD=1.13mm L=400mm | 8-26-0060 | 1780 |
| MHF 7S-7S harness OD=1.13mm L=500mm | 8-24-0163 | 1635 |
MHF 7S SAMPLE HARNESS FOR EVALUATION PART NUMBERS
| Part Number Description | Part Number | Weight (mg) |
| MHF 7S-7S harness OD=1.13mm L=50mm 180 degree orientation | 8-25-0940 | 670.5 |
| MHF 7S-7S harness OD=1.13mm L=100mm 180 degree orientation | 8-25-0941 | 317 |
| MHF 7S-7S harness OD=1.13mm L=150mm 180 degree orientation | 8-25-0942 | 829 |
| MHF 7S-7S harness OD=1.13mm L=200mm 180 degree orientation | 8-25-0943 | 634 |
| MHF 7S-7S harness OD=1.13mm L=300mm 180 degree orientation | 8-25-0944 | 1463 |
| MHF 7S-7S harness OD=1.13mm L=400mm 180 degree orientation | 8-25-0945 | 1780 |
| MHF 7S-7S harness OD=1.13mm L=500mm 180 degree orientation | 8-25-0946 | 2097 |
MHF 7S ACCESSORIES PART NUMBERS
| Part Number Description | Part Number | Weight (mg) | Image |
| MHF 7S SMA adapter for receptacle high-cycle narrow-pitch without-floating-function | 91136-0001 | 824.5 |  |
| MHF 7S SMA adapter for receptacle high-cycle narrow-pitch cable SMA plug | 91197-300P | 4718.8 |  |
| MHF 7S SMA adapter for receptacle high-cycle narrow-pitch cable SMA Jack | 91197-300J | 4451.3 |  |
| MHF 7S adapter for plug voltage-check | 91245-0001 | 790 | |
| MHF 7S insertion/extraction tool | 91186-0001 | 697.5 |  |
| MHF 7S SMA adapter for receptacle high-cycle narrow-pitch with-floating-function | 91145-0001 | 736.3 |  |
| MHF 7S SMA adapter for plug electrical-performance-check | 91255-0001 | 2725.9 | |
| MHF 7S SMA adapter for receptacle electrical-performance-check SMA | 91256-0001 | 2718.8 |

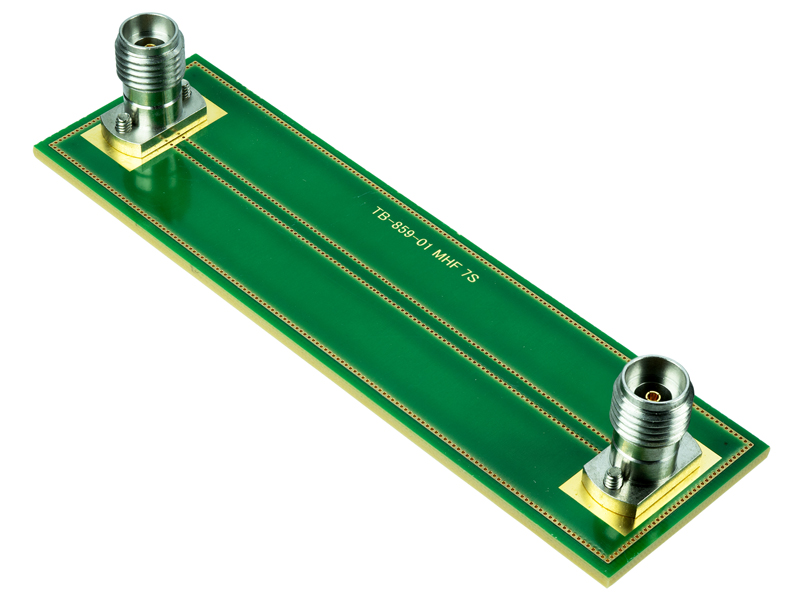

SI Test Board with 2.92mm Adapter
| Part Number Description | Part Number | Weight (mg) | Image |
| SI Test Board for MHF 7S | 91606-001B-001 | 20262 |
Main Board |
Insertion/Extraction tools to handle MHF® 7S
Due to the small size of the products and the need for appropriate connector mating, dedicated insertion and extraction tools help ensure safe operation and improve reliability during assembly and maintenance.
How to extract
Slide the tool until it reaches a stopper, lift vertically to the PCB surface.
Adapters for plugs and receptacles
For plug inspection, Electrical Performance Check and Voltage/Continuity Check tools are provided.
Receptacle inspection tools, on the other hand, support Electrical performance check only.
The lineup includes various types to suit different applications, such as Standard series, High Cycle types with different durability ratings, and narrow-pitch types that enable operation on high-density PCB layouts.
| Standard series | High Cycle Series | ||
| Standard type | Narrow Pitch type | Detachable type | |
| Durability: 500 | Durability: 10,000 | Durability: 10,000 (Probe), 100 (Cable) | Durability: 10,000 (Probe), 200,000 (Base) |
Since the receptacle and the adapter are manually mated, the durability cycles are limited to 500. This type is best suited for inspection in small scale production environments, such as laboratories. |
The Standard type connects directly from the probe to the measuring instrument. |
The Narrow pitch type is designed with a tight pitch, allowing multiple probes to be aligned and measured simultaneously. |
The Detachable type allows the adapter and probe to be removed and replaced. The base adapter is compatible with all series. |

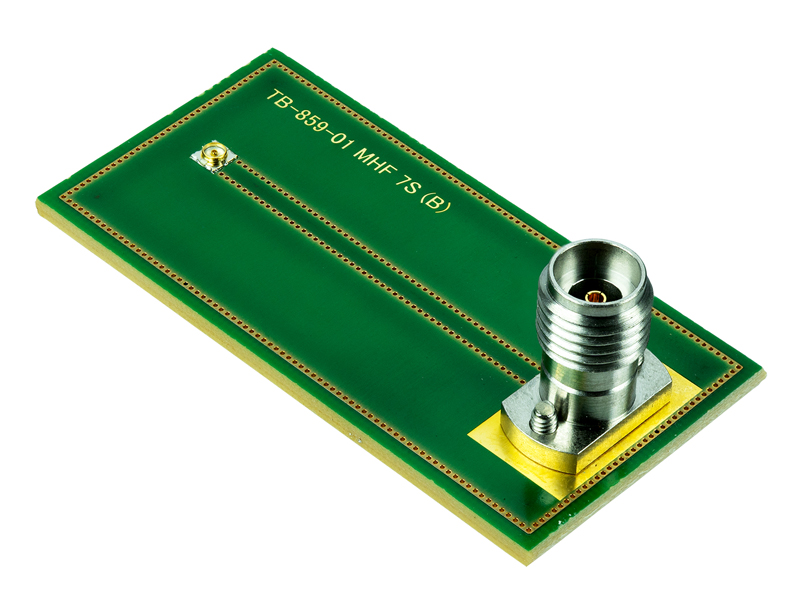

SI Test boards for signal integrity performance measurement
Signal Integrity testing, measures and analyzes the extent to which high-speed signals maintain their integrity when transmitted through a connector.
MHF 7S EOL PART NUMBERS
| Part Number Description | EOL P/N | EOL feature | Alternative P/N | Alternative feature |
| MHF 7S receptacle | 20981-001E-01 | Ground contact & Housing shape difference | 20981-001E-02 | Ground contact & Housing shape difference |
