EVAFLEX® 5-VS
自動鎖扣，高溫款可選(105℃)，高速數據傳輸，水平插拔, 0.5 mm 間距帶屏蔽罩的 FFC/FPC連接器

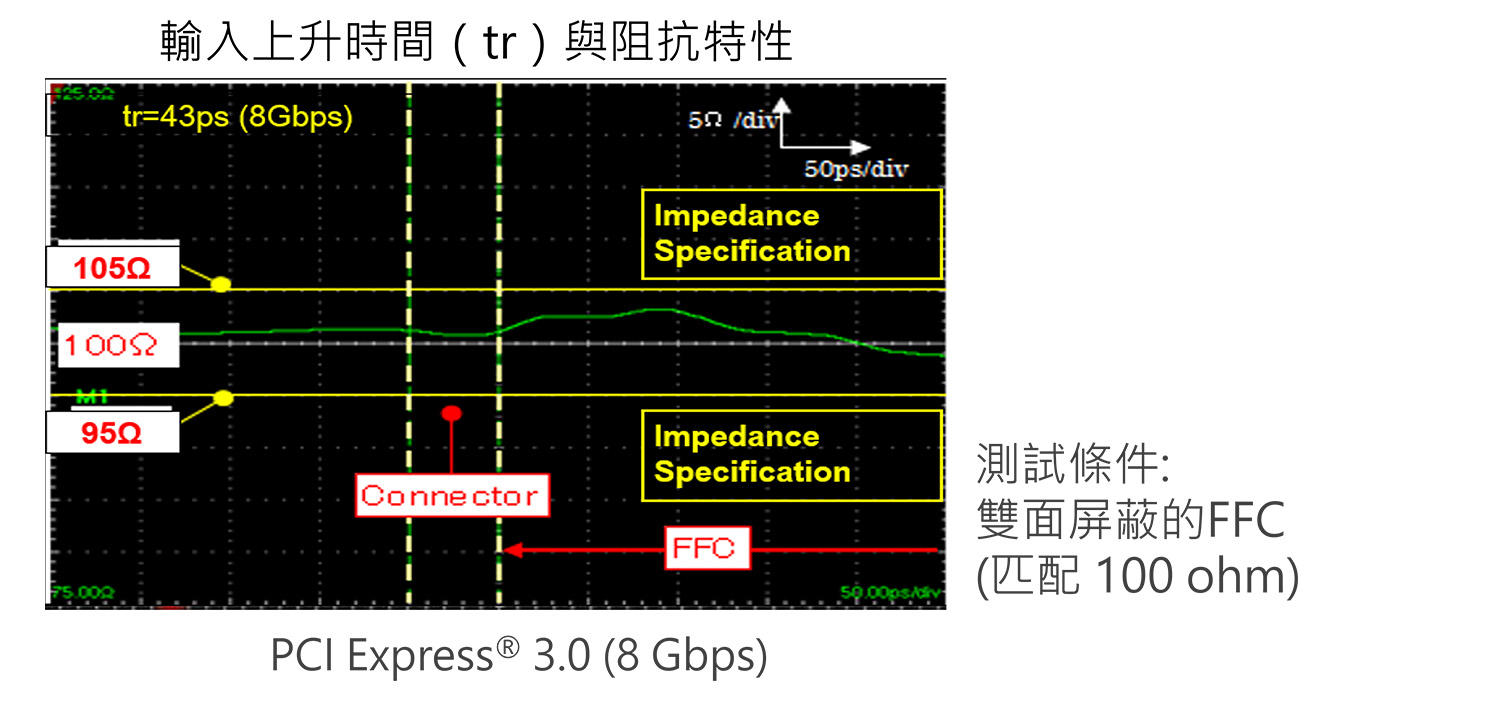

支持8+ Gbps 高速信号

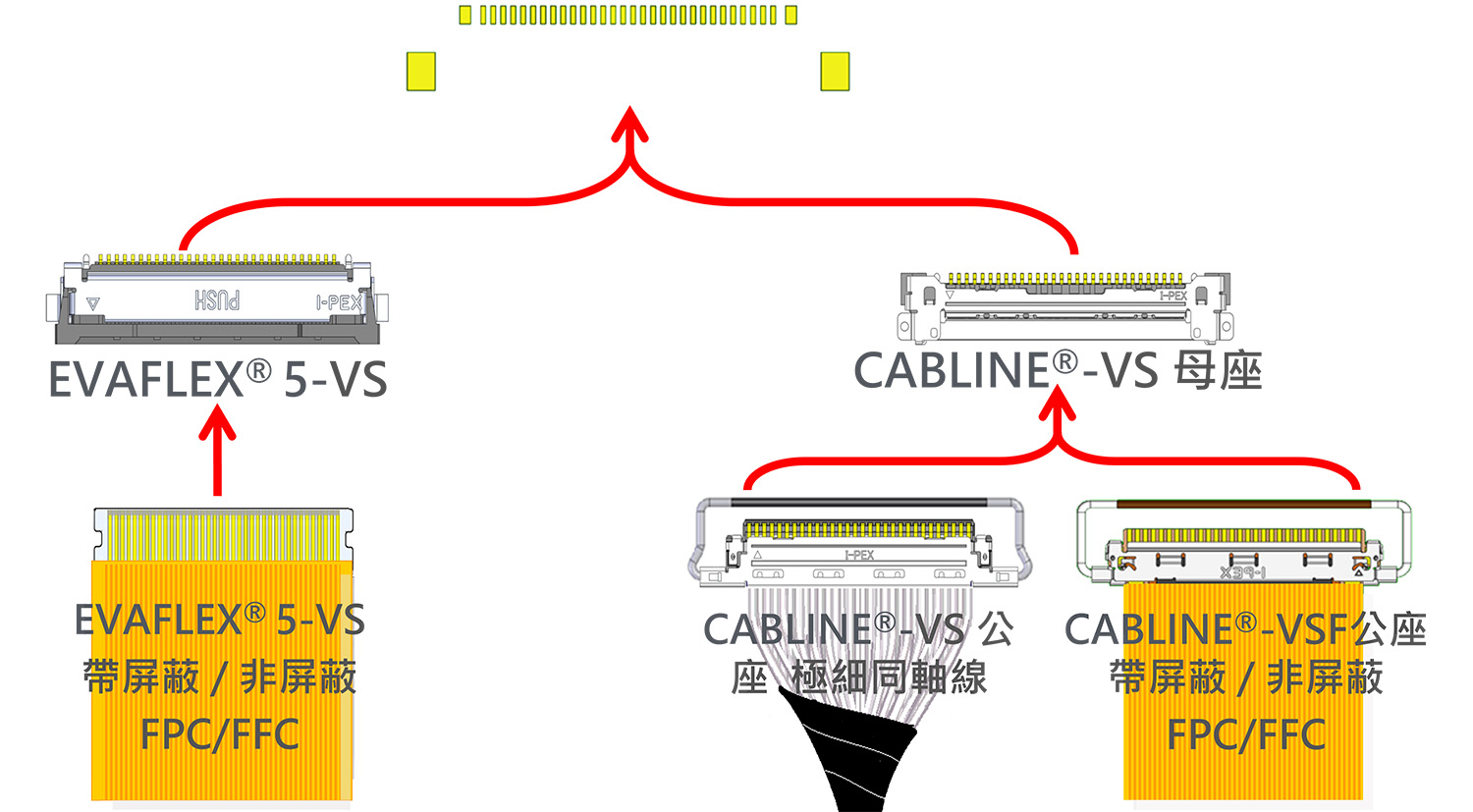

脚位兼容CABLINE®-VS (VESA标准NotePC LCD 连接器)

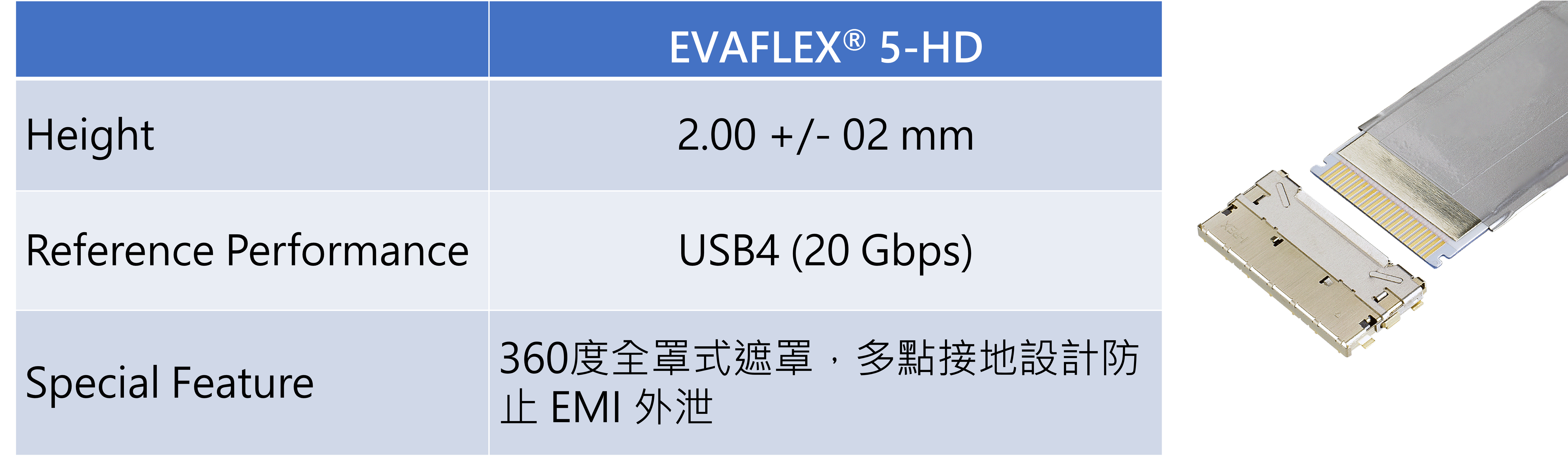

延伸EVAFLEX® 系列產品自帶鎖扣連接器 還有其他選擇
Contact Pitch:
0.5
mm
嵌合類型:
水平
Height:
2.0
max.
(1.9 nom.)
mm
可提供Pin數:
10152024304050
FPC/FFC Thickness:
0.33
下載
支持8+ Gbps 高速信号
脚位兼容CABLINE®-VS (VESA标准NotePC LCD 连接器)
延伸EVAFLEX® 系列產品自帶鎖扣連接器 還有其他選擇
| Product Type | 自動鎖扣
|
| Contact Pitch |
0.5
mm
|
| 嵌合類型 | 水平
|
| Height |
2.0
max.
(1.9 nom.)
mm
|
| Available Pin Counts | 10152024304050
|
| Depth |
4.95 mm
|
| Width Formula |
6.25 + (0.5 x pin count) x 3 (mm)
|
| Operating Temperature | |
| FPC/FFC Thickness | 0.33
|
| Shielded FPC / FFC | Yes
|
| Current rating | |
| Applicable Standards (Reference Only) | USB3 Gen1 (5 Gbps/Lane)eDP HBR3 (8.1 Gbps/Lane)eDP HBR2 (5.4 Gbps/Lane)eDP (2.7 Gbps/Lane)V-By-One HS 1.4 (4 Gbps/Lane)HDMI 2.0 (6 Gbps/Lane)MiPi standards
|
| Full EMI Shielding (ZenShield®) | No
|
| Mechanical lock | Yes
|
| Automotive Standards | USCAR-2 (40P tested. 5.4.6 (Vibration and Mechanical Shock (V1)) evaluation passed) |
推薦料號
若清單中查詢不到您要找的料號，請使用調查表詢問。
其他料號
請注意:此清單可能包含了暫時還沒有可用樣品的產品和不再銷售的型號。
如您有新的詢價，請參考上述推薦的料號。
EVAFLEX 5-VS OTHER PART NUMBERS
| Part Number Description | PART NUMBERS | Weight (mg) |
| EVAFLEX 5-VS standard 10pin | 20535-010E-01 | 145.36 |
| EVAFLEX 5-VS standard 10pin | 20535-010E-02 | 145.36 |
| EVAFLEX 5-VS standard 15pin | 20535-015E-01 | 181.82 |
| EVAFLEX 5-VS standard 15pin | 20535-015E-02 | 181.82 |
| EVAFLEX 5-VS standard 20pin | 20535-020E-01 | 220.59 |
| EVAFLEX 5-VS standard 20pin | 20535-020E-02 | 220.59 |
| EVAFLEX 5-VS standard 24pin | 20535-024E-01 | 249.64 |
| EVAFLEX 5-VS standard 24pin | 20535-024E-02 | 249.64 |
| EVAFLEX 5-VS standard 30pin | 20535-030E-01 | 296.26 |
| EVAFLEX 5-VS standard 30pin | 20535-030E-02 | 296.26 |
| EVAFLEX 5-VS standard 40pin | 20535-040E-01 | 373.64 |
| EVAFLEX 5-VS standard 40pin | 20535-040E-02 | 373.64 |
| EVAFLEX 5-VS Type CH 105℃ 10pin | 20720-010E-02 | 145.360 |
| EVAFLEX 5-VS Type CH 105℃ 15pin | 20720-015E-02 | 181.820 |
| EVAFLEX 5-VS Type CH 105℃ 20pin | 20720-020E-02 | 220.590 |
| EVAFLEX 5-VS Type CH105℃ 24pin | 20720-024E-02 | 249.640 |
| EVAFLEX 5-VS Type CH 105℃ 30pin | 20720-030E-02 | 296.260 |
| EVAFLEX 5-VS Type CH 105℃ 40pin | 20720-040E-02 | 373.640 |
| EVAFLEX 5-VS Robust type 105℃ 30pin | 20893-030E-02 | - |
| EVAFLEX 5-VS Robust type 105℃ 40pin | 20893-040E-02 | 352.4 |
| EVAFLEX 5-VS Robust type 105℃ 50pin | 20893-050E-02 | 442.2 |
SI Test Board with 2.92mm Adapter
| Part Number Description | Part Number | Weight (mg) |
| SI Test Board for EVAFLEX5-VS 10pin | 91570-010B-001 | 84888.78 |
| SI Test Board for EVAFLEX5-VS 15pin | 91570-015B-001 | 84960.44 |
| SI Test Board for EVAFLEX5-VS 20pin | 91570-020B-001 | 85037.54 |
| SI Test Board for EVAFLEX5-VS 24pin | 91570-024B-001 | 85099.08 |
| SI Test Board for EVAFLEX5-VS 30pin | 91570-030B-001 | 85193.3 |
| SI Test Board for EVAFLEX5-VS 40pin | 91570-040B-001 | 85344.7 |
SI Test Board with 2.92mm Adapter
| Part Number Description | Part Number | Weight (mg) |
| SI Test Board for EVAFLEX 5-VS TYPE CH 10pin | 91570-010B-002 | 84888.76 |
| SI Test Board for EVAFLEX 5-VS TYPE CH 15pin | 91570-015B-002 | 84960.4 |
| SI Test Board for EVAFLEX 5-VS TYPE CH 20pin | 91570-020B-002 | 85037.48 |
| SI Test Board for EVAFLEX 5-VS TYPE CH 24pin | 91570-024B-002 | 85099.02 |
| SI Test Board for EVAFLEX 5-VS TYPE CH 30pin | 91570-030B-002 | 85193.22 |
| SI Test Board for EVAFLEX 5-VS TYPE CH 40pin | 91570-040B-002 | 85344.6 |
SI Test Board with 2.92mm Adapter
| Part Number Description | Part Number | Weight (mg) |
| SI Test Board for EVAFLEX 5-VS TYPE R 30pin | 91570-030B-003 | 85190.92 |
| SI Test Board for EVAFLEX 5-VS TYPE R 40pin | 91570-040B-003 | 85341.58 |
| SI Test Board for EVAFLEX 5-VS TYPE R 50pin | 91570-040B-003 | 85341.58 |
