CABLINE^®-CA IIF PLUS

全屏蔽設計和機械鎖扣，適用於高速數據傳輸 (32 Gbps/lane)，0.4mm 間距，水平對插款的FPC 型公頭連接器

ZenShield^®的全屏蔽設計和多點接地結構，EMC 解決方案的理想選擇

此插頭連接器與 CABLINE^®-CA II PLUS 母座 (20790-060E-##).

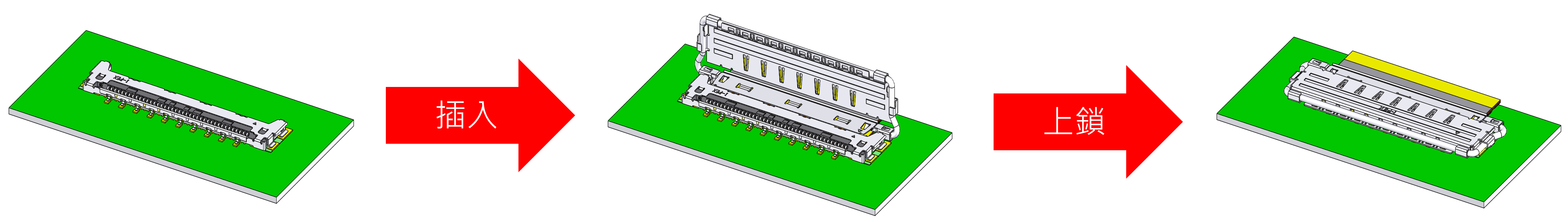

*操作方法請參考「如何嵌合和解除」的影片來處理。

Contact Pitch:

0.4 mm

Mating Type / Direction:

Horizontal

Mated Height:

Nom. 0.95 +0.25/-0.1 mm

Operating Temperature:

-40 to 85℃ (233 to 358 K)

FPC / FFC Thickness:

Contact Area: 0.25 +0.02/-0.03 mmGround Area: 0.37 +0.04/-0.06 mm

Current Rating:

Signal: 0.3 A/pin

Measurement results

Connector : CABLINE-CA IIF 40P
FPC : Shielded FPC, Differential 90 ohm
Length : 100 mm
Pin Assignment : GSSGSSG

Transmission Speed (Reference Only)	32 Gbps/lane NRZ
Contact Pitch	0.4 mm
Mating Type / Direction	Horizontal
Mated Height	Nom. 0.95 +0.25/-0.1 mm
Available Pin Count	Signal: 60
Depth	7.24 mm
Width	30.95 mm
Operating Temperature	-40 to 85℃ (233 to 358 K)
FPC / FFC Thickness	Contact Area: 0.25 +0.02/-0.03 mmGround Area: 0.37 +0.04/-0.06 mm
FPC Type	Shielded FPC
Current Rating	Signal: 0.3 A/pin
Applicable Standards (Reference Only)	32 Gbps/LaneUSB4 Gen 4 (40 Gbps/Lane PAM3)Thunderbolt 5 (40 Gbps/Lane PAM3)USB4 Gen 3 (20 Gbps/Lane)DisplayPort UHBR20 (20 Gbps/Lane)V-By-One US (16 Gbps/Lane)HDMI 2.1 (12 Gbps/Lane)USB 3.2 Gen 2 (10 Gbps/Lane)DisplayPort UHBR3 (8.1 Gbps/Lane)HDMI 2.0 (6 Gbps/Lane)eDP HBR 2 (5.4 Gbps/Lane)USB 3.1 Gen 1 (5 Gbps/Lane)V-By-One HS 1.4 (4 Gbps/Lane)HDMI 1.3 (3.4 Gbps/Lane)eDP (2.7 Gbps/Lane)MiPi standards
Full EMI Shielding (ZenShield®)	Yes
Mechanical lock	Yes

CABLINE-CA IIF PLUS RECOMMENDED PART NUMBERS

Part Number Description	Part Number	Weight (mg)
CABLINE-CA IIF PLUS plug shell assembly 60pin	20901-060T-01	333
CABLINE-CA II PLUS receptacle 60pin	20790-060E-02	161.13
