MINIDOCK™ STANDARD
穩固的高pin數 Docking I/O連接器
適合於多種應用的穩固型連接器(移動設備、儀器儀錶，醫療器械等)
高達 5,000 次的插拔壽命
用於可靠對接的導引針腳
Contact Pitch:
0.635 mm
Mating Type / Direction:
Horizontal, Vertical
Height:
Plug: 11.13 mmReceptacle: 11.13 mm
Available Pin Count:
Signal: 100, 200
下載
-
PCB/FPC Data
-
Symbols(腳位圖)和Footprints(封裝圖)
-
-
-
認證
適合於多種應用的穩固型連接器(移動設備、儀器儀錶，醫療器械等)
高達 5,000 次的插拔壽命
用於可靠對接的導引針腳
MINIDOCK™設計

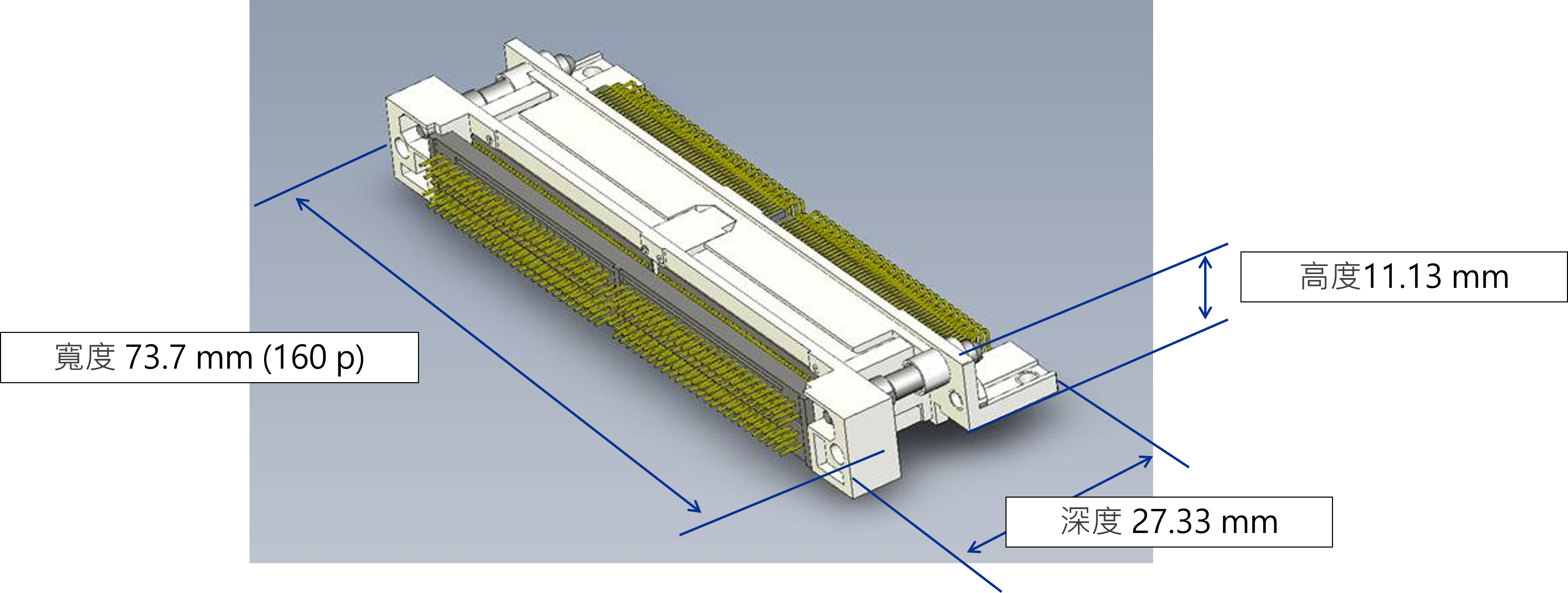

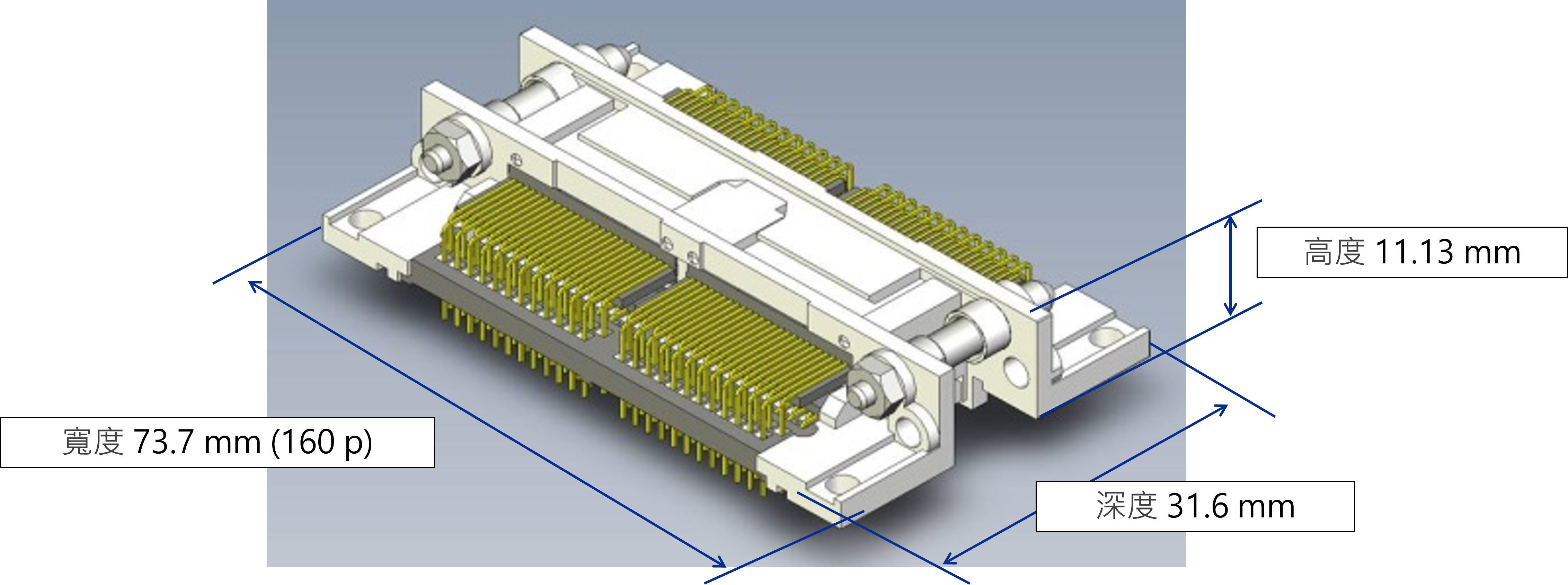

配對範例：30046-160T 與 30056-160T
| Product Type | 標準款
|
| Contact Pitch | 0.635 mm
|
| Mating Type / Direction | Horizontal, Vertical
|
| Height | Plug: 11.13 mmReceptacle: 11.13 mm
|
| Available Pin Count | Signal: 100, 200 |
| Depth | Plug: 9.9 to 17.8 mmReceptacle: 11.13 to 22.53 mm
|
| Width | Plug / Receptacle: 36.0 to 96.1 mm
|
| Current Rating | |
| Full EMI Shielding (ZenShield®) | No
|
| Mechanical Lock | No
|
| Other Features | 帶螺絲不帶定位柱
|

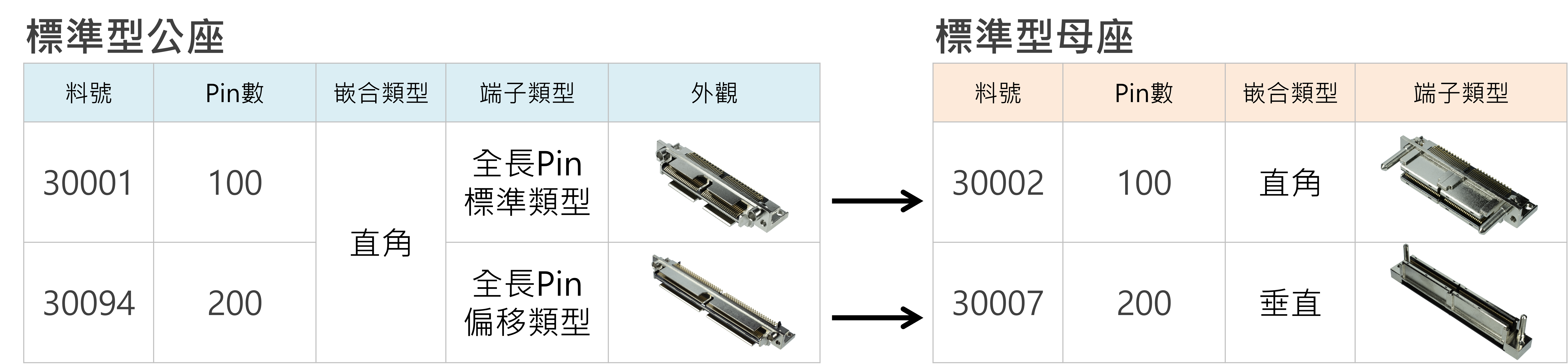

推薦料號
若清單中查詢不到您要找的料號，請使用調查表詢問。
MINIDOCK (Standard) RECOMMENDED PART NUMBERS
| Part Number Description | Part Number | Weight (mg) |
| MINIDOCK STANDARD plug right-angle 200pin without screw | 30094-200T-01F | 21227.05 |
| MINIDOCK STANDARD receptacle right-angle 100pin without screw | 30002-100T-F | 18137 |
| MINIDOCK STANDARD receptacle vertical 200pin | 30007-200T-03F | 171240 |
| MINIDOCK STANDARD plug right-angle 100pin without screw | 30001-100T-F | 12591 |
OTHER MINIDOCK (Standard) PART NUMBERS
| Part Number Description | Part Number | Weight (mg) |
| MINIDOCK STANDARD plug right-angle 100pin with screw | 30001-100T-01F | 11590 |
| MINIDOCK STANDARD plug right-angle 200pin with screw | 30094-200T-F | 21427.05 |
| MINIDOCK plug 160pin | 30033-160T-F | 26790.7 |
其他料號
請注意:此清單可能包含了還沒有可用樣品的產品和不再銷售的型號。
如您有新的詢價，請參考上述推薦的料號。
MINIDOCK (Standard) Plan to EOL PART NUMBERS
| Part Number Description | EOL P/N | EOL P/N feature | Alternative P/N | Alternative P/N feature |
| MINIDOCK STANDARD plug right-angle 240pin with screw | 30001-240T-02F | Contact us | ||
| MINIDOCK STANDARD receptacle right-angle 240pin with screw | 30002-240T-01F | Contact us | ||
| MINIDOCK receptacle free 80pin | 30030-080T-07F | with screw, with boss | 30030-080T-03F | without screw, without boss |
| MINIDOCK receptacle slim 80pin | 30030-080T-18F | guidepin material stainless steel | 30030-080T-03F | guidepin material steel |
MINIDOCK (Standard) EOL PART NUMBERS
| Part Number Description | EOL P/N | EOL P/N feature | Alternative P/N | Alternative P/N feature |
| MINIDOCK STANDARD plug right-angle 120pin | 30001-12AT-F | Au 0.75um Plating | Contact us | |
| MINIDOCK STANDARD receptacle right-angle 120pin | 30002-12AT-F | Au 0.75um Plating | Contact us | |
| MINIDOCK STANDARD receptacle free 80pin | 30030-080T-04F | without Guide pin | 30030-080T-03F | Sphere top Guide pin |
| MINIDOCK STANDARD plug right-angle 120pin | 30001-120T-01F | Contact us | ||
| MINIDOCK STANDARD plug right-angle 120pin | 30001-120T-03F | Contact us | ||
| MINIDOCK STANDARD plug right-angle 120pin | 30001-120T-F | Contact us | ||
| MINIDOCK STANDARD plug right-angle 160pin | 30001-160T-01F | Contact us | ||
| MINIDOCK STANDARD plug right-angle 160pin | 30001-160T-F | Contact us | ||
| MINIDOCK STANDARD plug right-angle 200pin | 30001-200T-01F | Contact us | ||
| MINIDOCK STANDARD receptacle right-angle 120pin without screw | 30002-120T-01F | Contact us | ||
| MINIDOCK STANDARD receptacle right-angle 120pin | 30002-120T-F | Contact us | ||
| MINIDOCK STANDARD receptacle right-angle 160pin | 30002-160T-01F | Contact us | ||
| MINIDOCK STANDARD receptacle right-angle 160pin | 30002-160T-02F | Contact us | ||
| MINIDOCK STANDARD receptacle right-angle 160pin | 30002-160T-F | Contact us | ||
| MINIDOCK STANDARD receptacle right-angle 200pin | 30002-200T-01F | Contact us | ||
| MINIDOCK STANDARD receptacle | 30007-100T-F | Contact us | ||
| MINIDOCK STANDARD receptacle | 30007-120T-F | Contact us | ||
| MINIDOCK STANDARD receptacle | 30007-240T-F | Contact us | ||
| MINIDOCK STANDARD | 30011-***T-** | Contact us | ||
| MINIDOCK STANDARD | 30020-***T-** | Contact us | ||
| MINIDOCK STANDARD | 30024-***T-** | Contact us | ||
| MINIDOCK STANDARD | 30025-***T-** | Contact us | ||
| MINIDOCK STANDARD | 30031-***T-** | Contact us | ||
| MINIDOCK STANDARD | 30032-***T-** | Contact us | ||
| MINIDOCK STANDARD | 30040-***T-** | Contact us | ||
| MINIDOCK STANDARD | 30041-***T-** | Contact us | ||
| MINIDOCK STANDARD | 30052-***T-** | Contact us | ||
| MINIDOCK STANDARD | 30053-***T-** | Contact us | ||
| MINIDOCK STANDARD | 30058-***T-** | Contact us | ||
| MINIDOCK STANDARD | 30060-***T-** | Contact us | ||
| MINIDOCK STANDARD | 30061-***T-** | Contact us | ||
| MINIDOCK STANDARD | 30062-***T-** | Contact us | ||
| MINIDOCK STANDARD | 30064-***T-** | Contact us | ||
| MINIDOCK STANDARD | 30078-***T-** | Contact us | ||
| MINIDOCK STANDARD | 30083-***T-** | Contact us | ||
| MINIDOCK STANDARD | 30A12-***T-** | Contact us |
