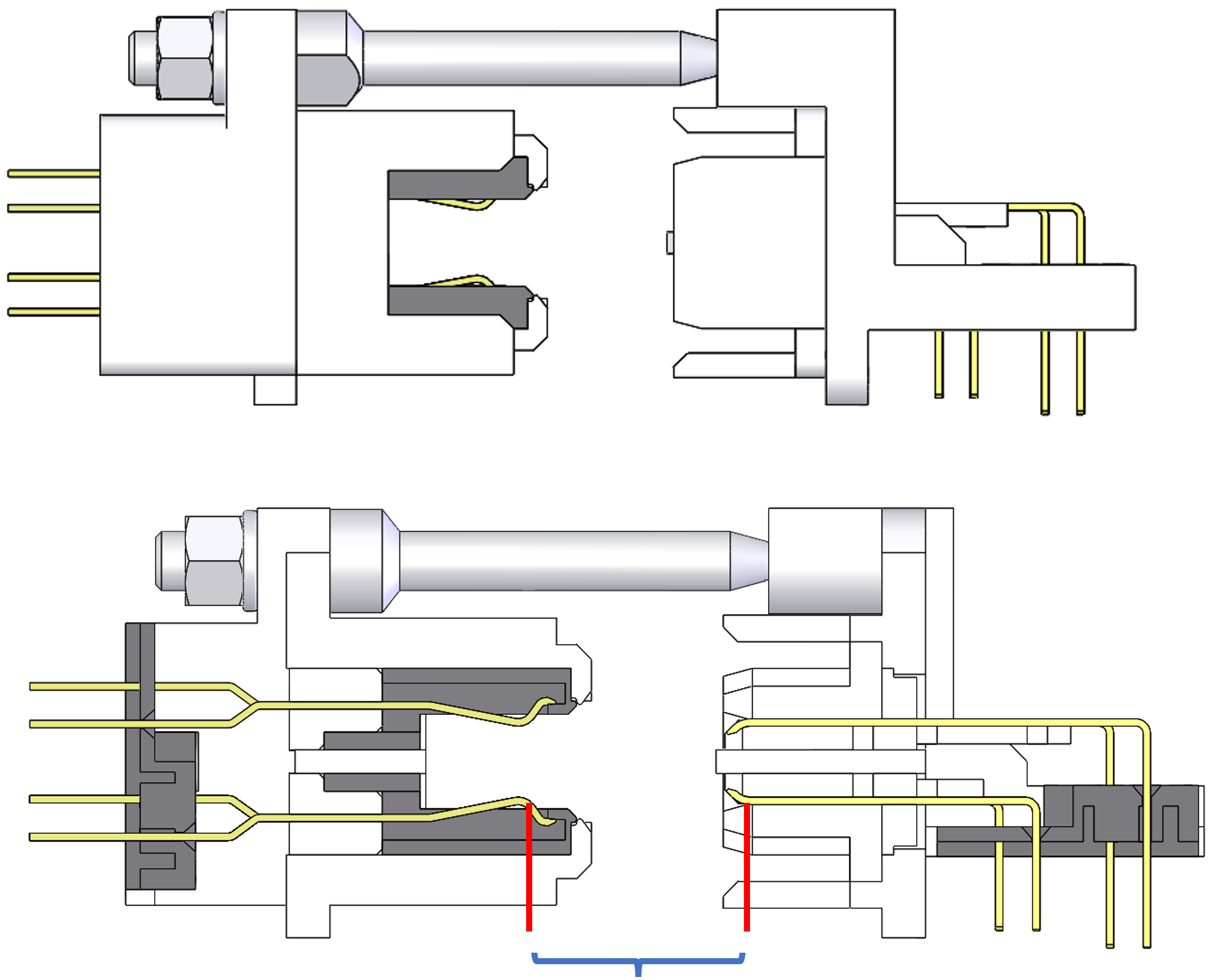

MINIDOCK™ SLIM
穩固的高pin數 Docking I/O連接器
適合於多種應用的穩固型連接器(移動設備、儀器儀錶，醫療器械等)
高達 5,000 次的插拔壽命
可選帶螺絲的款式，具備理想的鎖扣功能
Contact Pitch:
0.635 mm
Mating Type / Direction:
Horizontal, Vertical
Height:
Plug: 9.9 to 16.9 mmReceptacle: 11.13 to 22.53 mm
下載
-
PCB/FPC Data
-
Symbols(腳位圖)和Footprints(封裝圖)
-
-
-
認證
適合於多種應用的穩固型連接器(移動設備、儀器儀錶，醫療器械等)
高達 5,000 次的插拔壽命

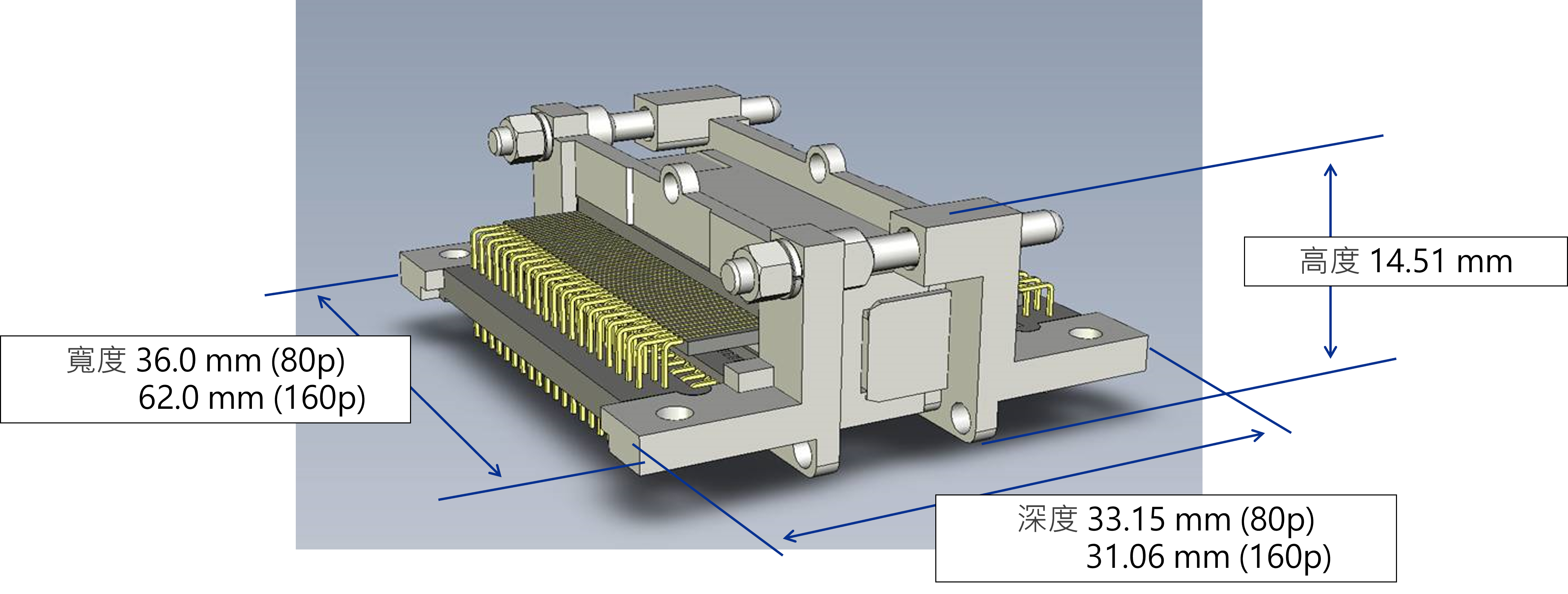

直角公座–直角母座一對
料號

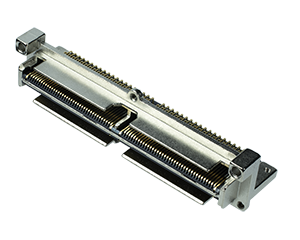

公座 30029 (80 pin), 30046 (160 pin)
母座 30030 (80 pin), 30047 (160 pin)
可選帶螺絲的款式，具備理想的鎖扣功能

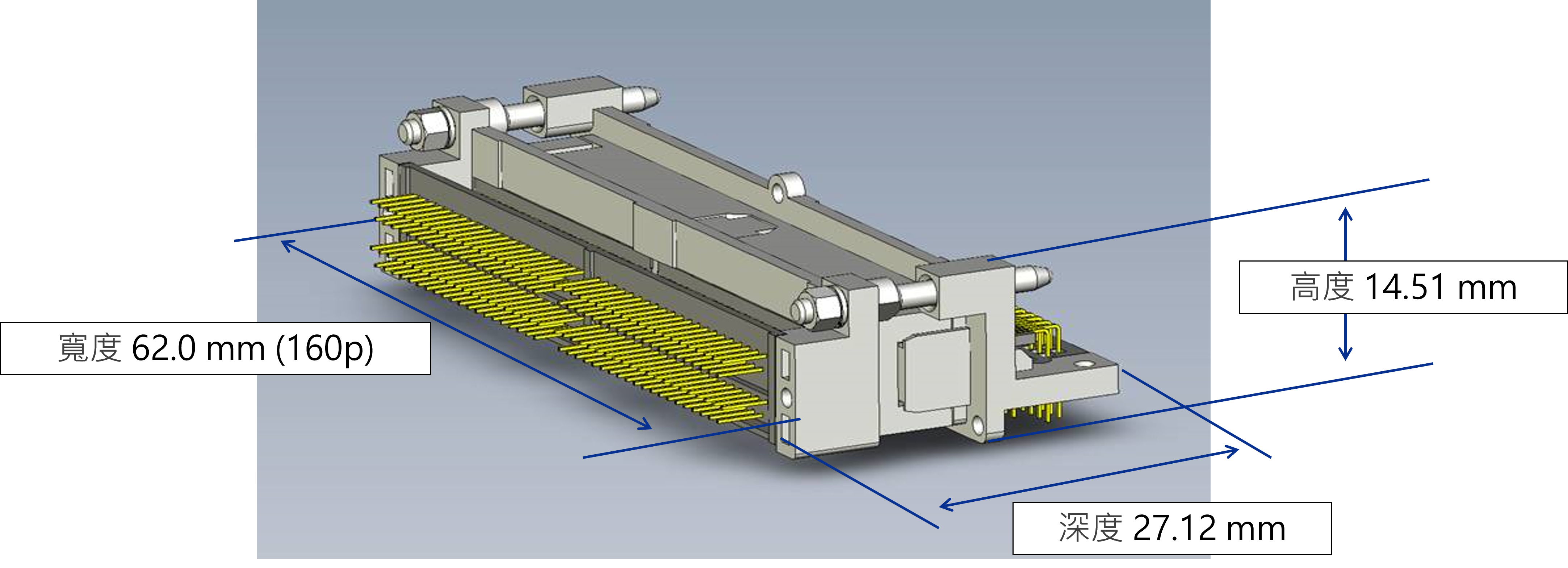

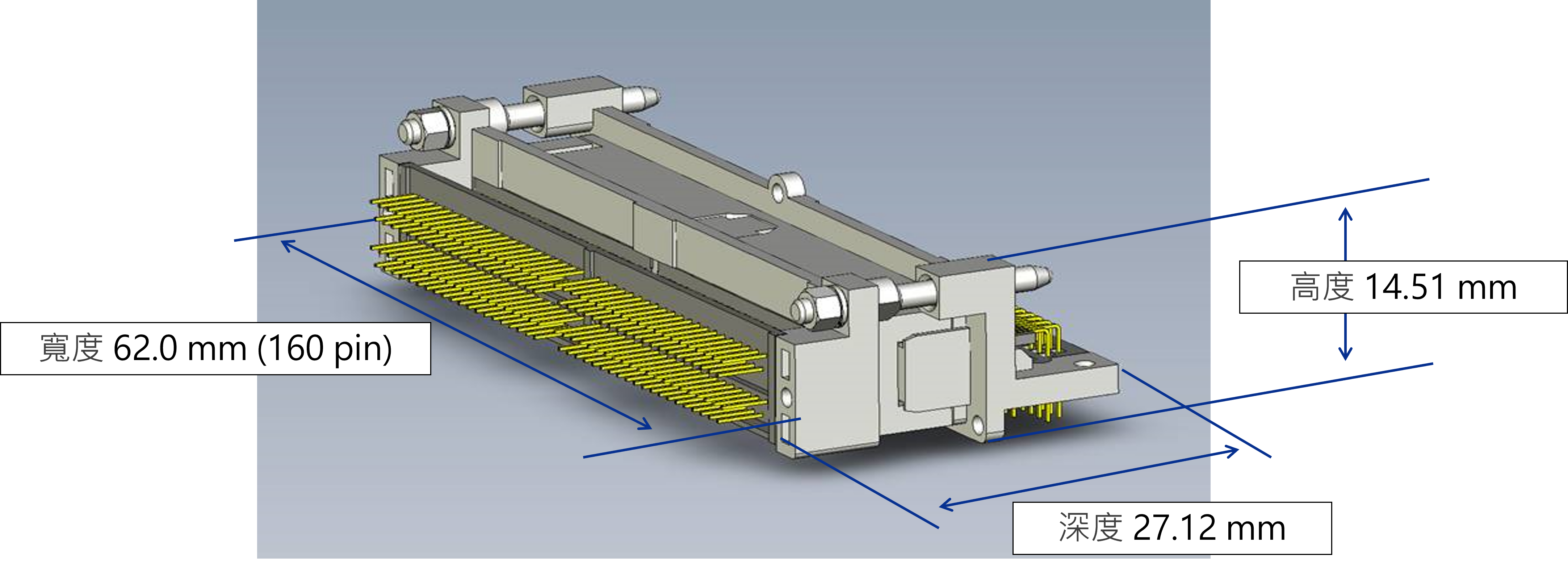

直角公座–垂直母座一對
料號
公座 30046 (160 pin)
母座 30056 (160 pin)
| Product Type | 薄款
|
| Contact Pitch | 0.635 mm
|
| Mating Type / Direction | Horizontal, Vertical
|
| Height | Plug: 9.9 to 16.9 mmReceptacle: 11.13 to 22.53 mm
|
| Available Pin Count | Signal: 80, 160 |
| Depth | Plug: 9.9 to 17.8 mmReceptacle: 11.13 to 22.53 mm
|
| Width | Plug / Receptacle: 36.0 to 96.1 mm
|
| Current Rating | |
| Full EMI Shielding (ZenShield®) | No
|
| Mechanical lock | No
|
| Other Features | 帶定位柱帶螺絲
|
推薦料號
若清單中查詢不到您要找的料號，請使用調查表詢問。
MINIDOCK (Slim) RECOMMENDED PART NUMBERS
| Part Number Description | Part Number | Weight (mg) |

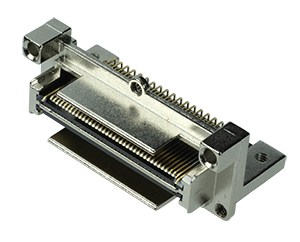

| MINIDOCK SLIM plug right-angle 80pin without boss without screw | 30029-080T-01F | 10090 |
| MINIDOCK SLIM plug right-angle 160pin with screw, contact length L=5.36 | 30046-160T-F | 17375.2 |

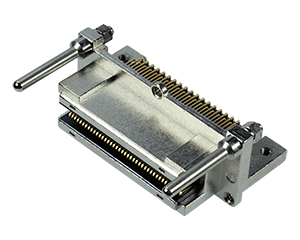

| MINIDOCK SLIM receptacle right-angle 80pin without boss without screw | 30030-080T-03F | 13378 |

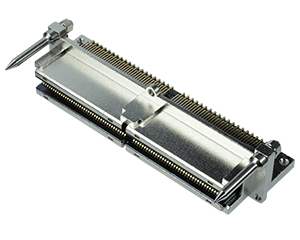

| MINIDOCK SLIM receptacle right-angle 160pin without screw | 30047-160T-01F | 20800 |

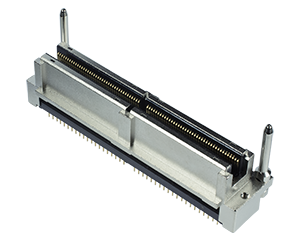

| MINIDOCK SLIM receptacle vertical 160pin with screw | 30056-160T-F | 23809.2 |
OTHER MINIDOCK (Slim) PART NUMBERS
| Part Number Description | Part Number | Weight (mg) |
| MINIDOCK SLIM plug right-angle 80pin with boss with screw | 30029-080T-02F | 10310 |
| MINIDOCK SLIM plug right-angle 80pin with boss without screw | 30029-080T-03F | 10360 |
| MINIDOCK SLIM plug right-angle 80pin without boss with screw | 30029-080T-F | 10310 |
| MINIDOCK SLIM plug right-angle 160pin without screw | 30046-160T-01F | 15840 |
| MINIDOCK SLIM plug right-angle 160pin without screw, contact length L=4.66 | 30046-160T-03F | 18985.2 |
| MINIDOCK SLIM receptacle right-angle 80pin without boss with screw | 30030-080T-01F | 13410 |
| MINIDOCK SLIM receptacle right-angle 80pin with boss with screw | 30030-080T-19F | 13958 |
| MINIDOCK SLIM receptacle right-angle 160pin with screw | 30047-160T-04F | 61515.6 |
| MINIDOCK SLIM receptacle vertical 160pin without screw | 30056-160T-01F | 20780 |
| MINIDOCK SLIM plug right-angle 160pin | 30046-160T-02F | 15840 |
| MINIDOCK SLIM receptacle right-angle 160pin | 30047-160T-F | 61515.6 |
其他料號
請注意:此清單可能包含了還沒有可用樣品的產品和不再銷售的型號。
如您有新的詢價，請參考上述推薦的料號。
MINIDOCK (Slim) Plan to EOL PART NUMBERS
| Part Number Description | EOL P/N | EOL feature | Alternative P/N | Alternative feature |
| MINIDOCK receptacle free 80pin | 30030-080T-07F | with screw, with boss | 30030-080T-03F | without screw, without boss |
| MINIDOCK receptacle slim 80pin | 30030-080T-18F | guidepin material stainless steel | 30030-080T-03F | guidepin material steel |
MINIDOCK (Slim) EOL PART NUMBERS
| Part Number Description | EOL P/N | EOL feature | Alternative P/N | Alternative feature |
| MINIDOCK SLIM plug right-angle 160pin | 30057-160T-F | Contact us | ||
| MINIDOCK SLIM plug right-angle 160pin | 30059-160T-01F | Contact us | ||
| MINIDOCK SLIM plug right-angle 158pin | 30095-158T-F | Contact us | ||
| MINIDOCK plug 160pin | 30059-160T-F | Contact us |
