CABLINE®-CA IIP PLUS
全屏蔽設計, 64 Gbps/Lane PAM4, 0.4 mm 間距, 水平插拔款, 雙芯線 & 極細同軸線裝配
使用paddle card 技術，支援高速傳輸64 Gbps/通道PAM4
AWG 34雙芯電纜適用於長距離傳輸也支援AWG 36和38極細同軸電纜，可實現佈線靈活性
外型小巧，嵌合高度僅1.14 mm，非常適合空間受限的應用，採用全屏蔽ZenShield®技術
*此纜線組件可搭配 CABLINE®-CA II PLUS 插座 (20790-060E-01/02)。
*操作方法請參考「如何嵌合和解除」的影片來處理。
Contact Pitch:
0.4 mm1.2 mm
Mating Type / Direction:
Horizontal
Mated Height:
Nom. 1.14 +/- 0.16 mm
Cable Size (Micro-Coaxial):
AWG 36AWG 38
Cable Size (Twinaxial):
AWG 34
Cable Size (Discrete):
AWG 32AWG 34AWG 36
下載
-
Specs & Test Reports
-
PCB/FPC Data
-
Symbols(腳位圖)和Footprints(封裝圖)
-
-
-
操作手冊

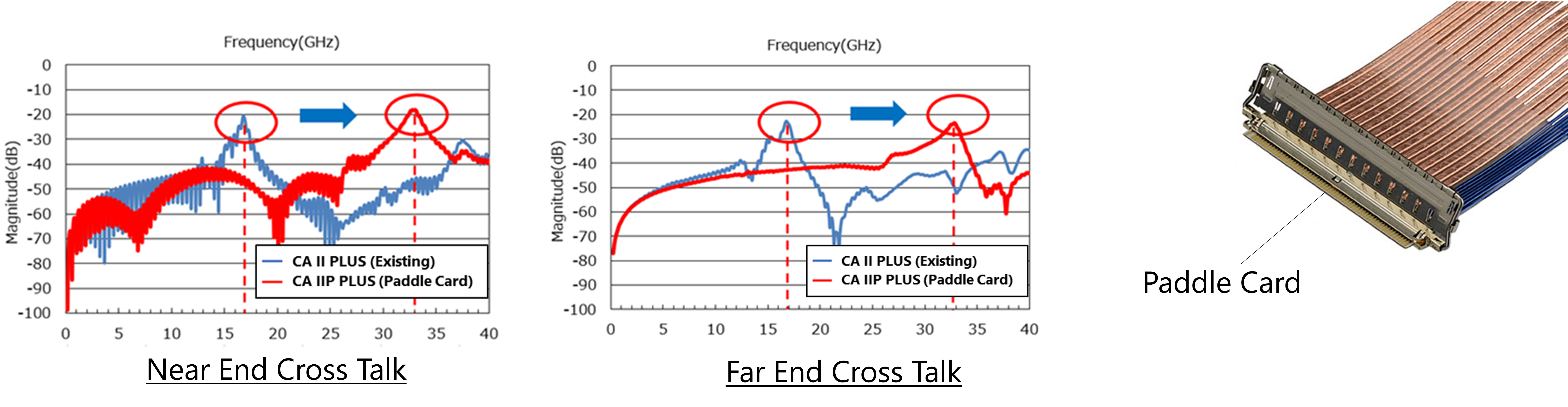

使用paddle card 技術，支援高速傳輸64 Gbps/通道PAM4
透過在電纜公座中使用paddle card，提供高訊號完整性。 現有CABLINE系列產品的數據速率和串擾性能得到了進一步優化。
關於Paddle card 技術
White papers : Paddle Card Technology for Micro Coax Cable Harness - Improving SI Performance

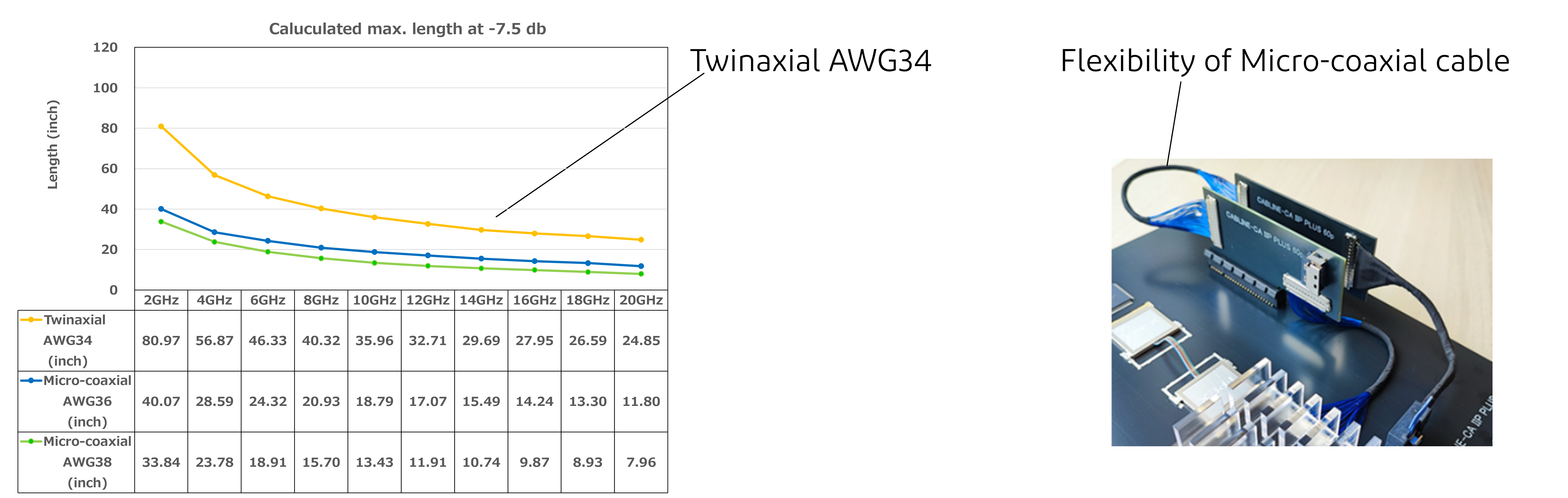

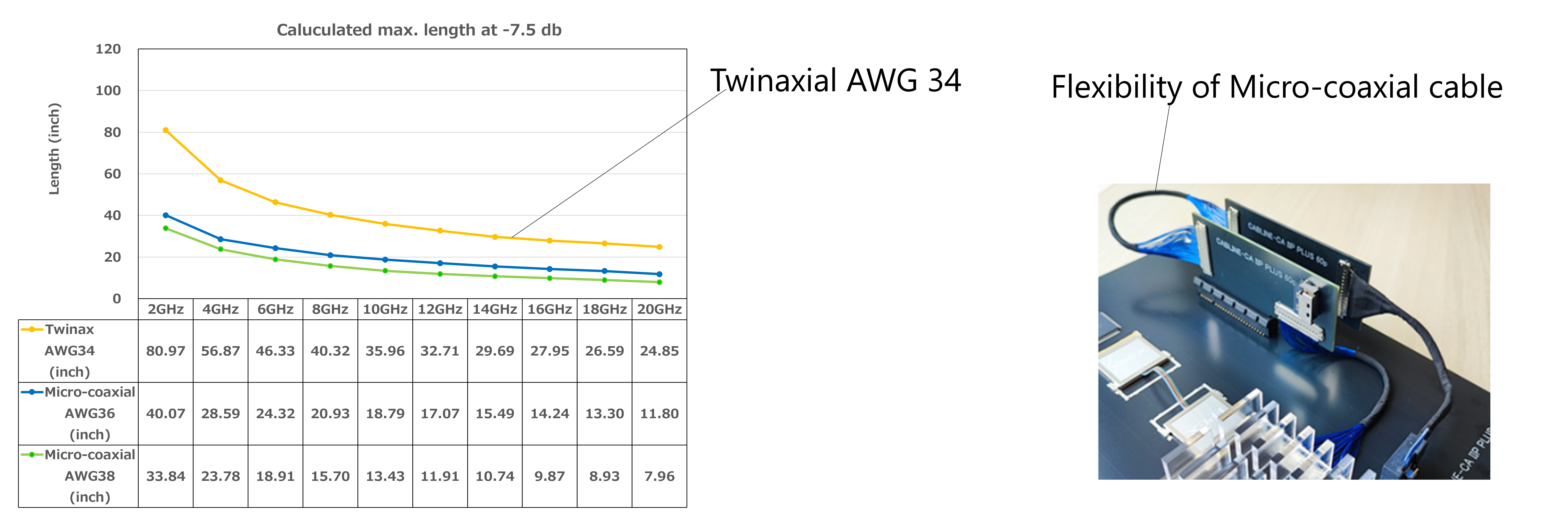

AWG 34雙芯電纜適用於長距離傳輸也支援AWG 36和38極細同軸電纜，可實現佈線靈活性

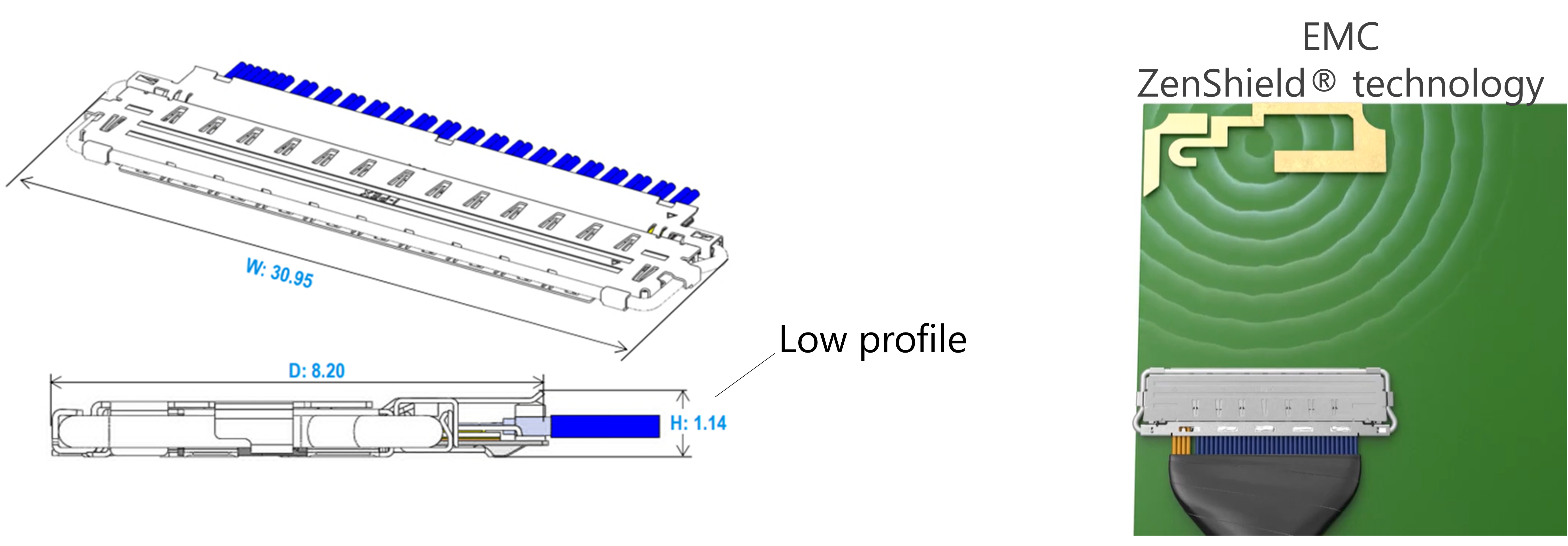

外型小巧，嵌合高度僅1.14 mm，非常適合空間受限的應用，採用全屏蔽ZenShield®技術
| Transmission Speed (Reference Only) | 64 Gbps/lane PAM4 |
| Contact Pitch | 0.4 mm1.2 mm
|
| Mating Type / Direction | Horizontal
|
| Mated Height | Nom. 1.14 +/- 0.16 mm
|
| Available Pin Count | Signal: 60 (19 differential pair max.) |
| Depth | 8.2 mm
|
| Width | 6.95 + (0.4 x pin count) mm
|
| Operating Temperature | |
| Cable Size (Micro-Coaxial) | AWG 36AWG 38
|
| Cable Size (Twinaxial) | AWG 34
|
| Cable Size (Discrete) | AWG 32AWG 34AWG 36
|
| Current Rating | |
| Applicable Standards (Reference Only) | 64 Gbps PAM456 Gbps PAM432 Gbps NRZ
|
| Full EMI Shielding (ZenShield®) | Yes
|
| Mechanical lock | Yes
|
| About Contact Pitch | 1.2mm (differential pair) *0.4mm (Signal Contacts) |
RECOMMENDED PART NUMBERS
Please contact us if you cannot find the needed part number(s) from the list below.
CABLINE-CA IIP PLUS RECOMMENDED PART NUMBERS
| Part Number Description | Part Number | Weight (mg) |
| CABLINE-CA II PLUS receptacle 60pin | 20790-060E-02 | 161.13 |
CABLINE-CA IIP PLUS SAMPLE HARNESS FOR EVALUATION PART NUMBERS
| Part Number Description | Part Number | Weight (mg) |
| CABLINE-CA IIP PLUS harness 60pin twinax 34AWG L=200mm pinassign A 1-1 | 82065-600B-01 | 5750 |
| CABLINE-CA IIP PLUS harness 60pin twinax 34AWG L=500mm pinassign A 1-1 | 82065-600B-02 | 13665 |
| CABLINE-CA IIP PLUS harness 60pin twinax 34AWG L=200mm pinassign B 1-1 | 82065-600B-03 | 6250 |
| CABLINE-CA IIP PLUS harness 60pin twinax 34AWG L=500mm pinassign B 1-1 | 82065-600B-04 | 13760 |
| CABLINE-CA IIP PLUS harness 60pin micro-coaxial 36AWG L=200mm pinassign A 1-1 | 82065-400B-01 | 6502 |
| CABLINE-CA IIP PLUS harness 60pin micro-coaxial 36AWG L=500mm pinassign A 1-1 | 82065-400B-02 | 12600 |
| CABLINE-CA IIP PLUS harness 60pin micro-coaxial 36AWG L=200mm pinassign B 1-1 | 82065-400B-03 | 7105 |
| CABLINE-CA IIP PLUS harness 60pin micro-coaxial 36AWG L=500mm pinassign B 1-1 | 82065-400B-04 | 13120 |
| CABLINE-CA IIP PLUS harness 60pin micro-coaxial 38AWG L=200mm pinassign A 1-1 | 82065-100B-01 | 4102 |
| CABLINE-CA IIP PLUS harness 60pin micro-coaxial 38AWG L=500mm pinassign A 1-1 | 82065-100B-02 | 8450 |
| CABLINE-CA IIP PLUS harness 60pin micro-coaxial 38AWG L=200mm pinassign B 1-1 | 82065-100B-03 | 4832 |
| CABLINE-CA IIP PLUS harness 60pin micro-coaxial 38AWG L=500mm pinassign B 1-1 | 82065-100B-04 | 9118 |

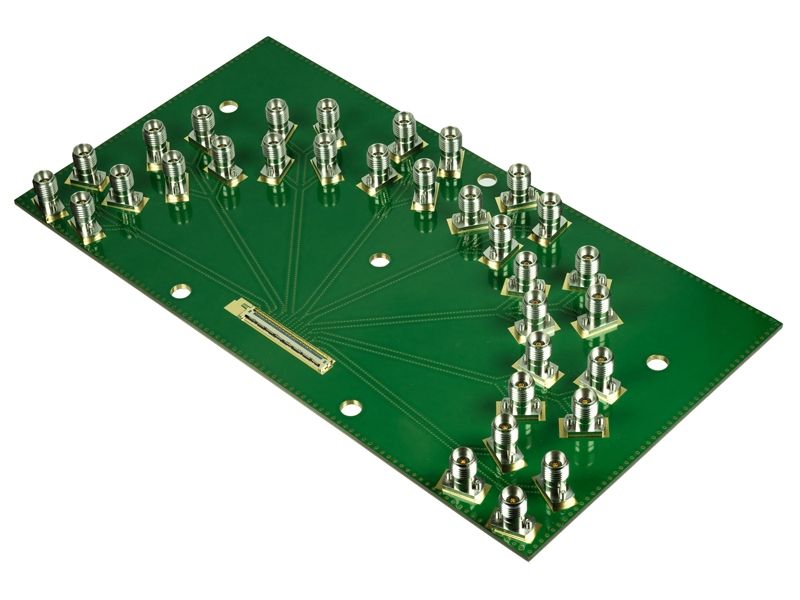

SI Test Board with 2.92mm Adapter
| Part Number | Weight (mg) | Image | |
| SI Test Board for CABLINE-CA IIP PLUS main-board A | 91623-060B-001 | 297722.26 |
|
| SI Test Board for CABLINE-CA IIP PLUS main-board B | 91623-060B-002 | 297722.26 |
