NOVASTACK® 35-HDH

高度1.5 mm, 0.35 mm 間距 , 全屏蔽式，高背設計, 高速 40 Gbps(≒20 GHz)/通道傳輸

    支持 40 Gbps(≒20 GHz)/通道傳輸，是最新高速訊號的理想選擇

    ZenShield®全屏蔽和多點接地設計，可防止 EMI 洩漏

    高背連接器設計，具有出色的配接可加工性

Contact Pitch:
0.35 mm
Mated Height:
Nom. 1.5 +/- 0.1 mm
Operating Temperature:
-40 to 85℃ (233 to 358 K)
Current Rating:
Signal: 0.5 A/pin (12.0 A max. (Total)), Power: -

下載

支持 40 Gbps(≒20 GHz)/通道傳輸，是最新高速訊號的理想選擇


ZenShield®全屏蔽和多點接地設計，可防止 EMI 洩漏


高背連接器設計，具有出色的配接可加工性


Contact Pitch
0.35 mm
Mated Height
Nom. 1.5 +/- 0.1 mm
Available Pin Count Signal: 60, 70
Depth
3.64 mm
Width
3.3 + (0.35 x pin count / 2) mm
Operating Temperature
-40 to 85℃ (233 to 358 K)
Current Rating
Signal: 0.5 A/pin (12.0 A max. (Total)), Power: -
Applicable Standards (Reference Only)
USB4 (20 Gbps/lane)USB 3.1 Gen 2 (10 Gbps)eDP HBR 3 (8.1 Gbps)eDP HBR 2 (5.4 Gbps)HDMI 2.0 (6 Gbps)V-By-One HS 1.4 (4 Gbps)MiPi standards
Full EMI Shielding (ZenShield®)
Yes
Mechanical lock
No

推薦料號

若清單中查詢不到您要找的料號，請使用調查表詢問。



NOVASTACK 35-HDH RECOMMENDED PART NUMBERS

Part Number Description Part Number Weight (mg) Note
NOVASTACK 35-HDH plug 60pin 21003-060E 99.3
NOVASTACK 35-HDH plug 70pin 21003-070E 114
NOVASTACK 35-HDH receptacle 60pin 21004-060E 77
NOVASTACK 35-HDH receptacle 70pin 21004-070E 89

SI Test Board with 2.92mm Adapter

Part Number Description Part Number Weight (mg) Image
SI Test Board for NOVASTACK 35-HDH 60pin 91594-060B-001  76266.31

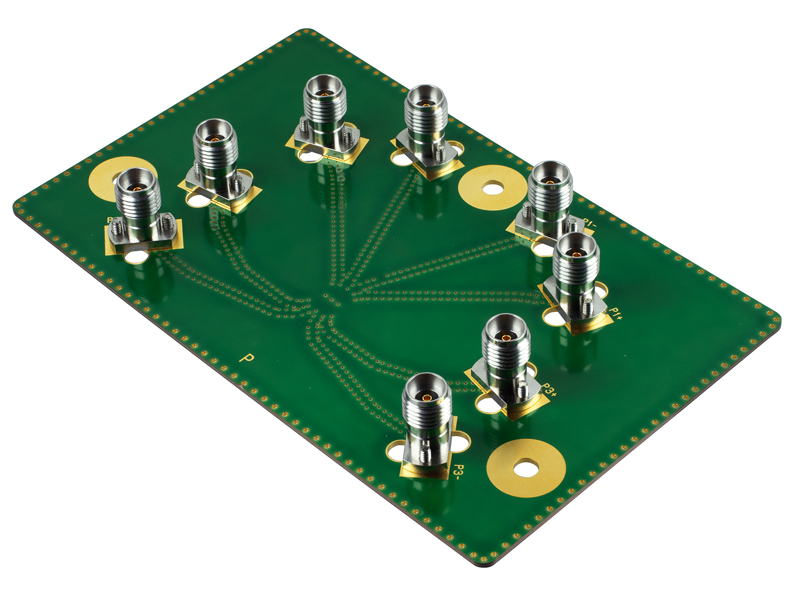

NOVASTACK_35-HDH_TB-1009_Plug_Jack-side_(C)

Main Board

NOVASTACK_35-HDH_TB-1030_Thru_(C)

Thru Board
