MHF®-TI
90 N min. 具備同軸線高度保持力
機械鎖扣穩定持久並提供即時觸感反饋，確保接觸可靠性/提供拆卸工具
適用線徑2.8 ~ 3.0 mm O.D.
*操作方法請參考「如何嵌合和解除」的影片來處理。
下載
-
產品目錄
-
2D圖面
-
電纜組件
-
O.D. 2.8 mm
-
O.D. 3.0 mm
-
-
3D STEP & IGES
-
STEP
-
IGES
-
-
Specs & Test Reports
-
PCB/FPC Data
-
Symbols(腳位圖)和Footprints(封裝圖)
-
-
-
操作手冊
90 N min. 具備同軸線高度保持力
機械鎖扣穩定持久並提供即時觸感反饋，確保接觸可靠性/提供拆卸工具
適用線徑2.8 ~ 3.0 mm O.D.
| Product Type | Coaxial RF Connector
|
| Mated Height | 3.65 mm max.
|
| SMT Size | 9.4 x 5.18 mm
|
| Frequency Range | Up to 6 GHz |
| Operating Temperature | |
| Cable Size (Micro-Coaxial) | AWG 26 O.D. 2.8 mmAWG 25 O.D. 3.0 mm
|
| V.S.W.R (Plug) | DC to 3 GHz: 1.5 max.3 to 6 GHz: 1.5 max.
|
| Applicable Standards (Reference Only) | 5G sub6Wi-FiLTE / LTE-AdvancedLPWABluetoothGPS
|
| Full EMI Shielding (ZenShield®) | No
|
| Mechanical Lock | Yes
|
| Automotive Standards | USCAR-2 (20859-001R-01 Plug & 20860-001E-01 Rece. Rev.6 - 5.4.6 (Vibration), 5.6.1 (Thermal Shock), 5.6.2 (Temp. & Humidity Cycle), 5.6.3 (High Temp. Exposure & Life) evaluation passed) |
| VSWR (Harness & Rece) | DC ~ 6 GHz : 1.5 max. |
推薦料號
若清單中查詢不到您要找的料號，請使用調查表詢問。
MHF-TI RECOMMENDED PART NUMBERS
| Part Number Description | Part Number | Weight (mg) | Note |
| MHF-TI harness OD=3.0mm/2.8mm | Offered as harness only | - | *see note below |
| MHF-TI receptacle | 20860-001E-01 | 342.49 |
*The MHF-TI is offered as our MHF-TI harness assembly only.
Please specify harness assembly specification (single-end or double-ended, cable size, length, color).
MHF-TI SAMPLE HARNESS FOR EVALUATION PART NUMBERS
| Part Number Description | Part Number | Weight (mg) |
| MHF-TI-TI harness OD=2.80mm L=500mm | 8-24-0161 | 6252 |
| MHF-TI-TI harness OD=2.80mm L=1,000mm | 8-25-0153 | 15830 |
| MHF-TI-TI harness OD=3.00mm L=500mm | 8-24-0238 | 7695 |
| MHF-TI-TI harness OD=3.00mm L=1,000mm | 8-25-0154 | 18330 |
MHF-TI SAMPLE HARNESS FOR EVALUATION PART NUMBERS
| Part Number Description | Part Number | Weight (mg) |
| MHF-TI-TI harness OD=2.80mm L=500mm 180 degree orientation | 8-26-0061 | 6525 |
| MHF-TI-TI harness OD=2.80mm L=1000mm 180 degree orientation | 8-26-0062 | 12670 |
| MHF-TI-TI harness OD=3.00mm L=500mm 180 degree orientation | 8-26-0063 | 7695 |
| MHF-TI-TI harness OD=3.00mm L=1000mm 180 degree orientation | 8-26-0064 | 15010 |
其他料號
請注意:此清單可能包含了暫時還沒有可用樣品的產品和不再銷售的型號。
如您有新的詢價，請參考上述推薦的料號。
MHF-TI OTHER PART NUMBERS
| Part Number Description | Part Number | Weight (mg) |
| MHF-TI receptacle without jig guide | 20860-001E-00 | 342.49 |
MHF-TI ACCESSORIES PART NUMBERS
| Part Number Description | Part Number | Weight (mg) | Image |
| MHF-TI Unlocking tool | 91097-0001 | 19330 |
|
SI Test Board with 2.92mm Adapter
| Part Number Description | Part Number | Weight (mg) | Image |
| SI Test Board for MHF TI | 91666-001B-001 | 18909 |
Main Board
Thru Boar |

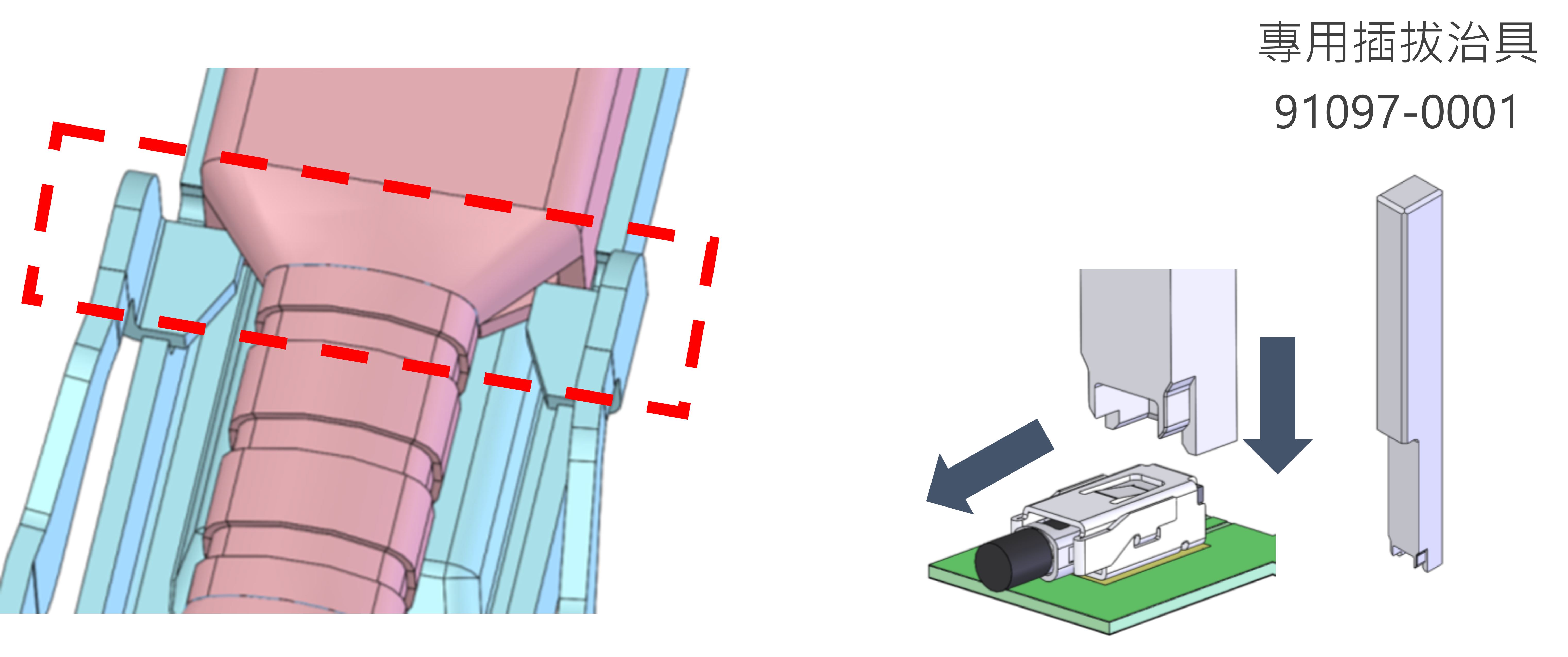

Unlocking tool to handle MHF®-TI
MHF®-TI is a mechanical lock type. A dedicated extraction tool is provided for unlocking.
Push the tool vertically and unlock the mating lock.
Keep unlock condition and pull the cable plug horizontally for unmating.
SI Test board for signal integrity performance measurement
Signal Integrity testing, measures and analyzes the extent to which high-speed signals maintain their integrity when transmitted through a connector.
