IARPB® VERTICAL
抗振、一體式、線對板連接器
外殼上的定位凸台將端子引導至 PCB 通孔
連接可靠性高
透過水平和垂直變化的廣泛可選範圍來提高設計靈活性
Contact Pitch:
2.5 mm
Mating Type / Direction:
Through-Hole DIP, Vertical
Height:
8.4 mm max.
Cable Size (Discrete):
AWG 22 (*)* (Insulation Diameter 1.67 mm max.)
下載
*SI測試板數據位於2D圖面之下

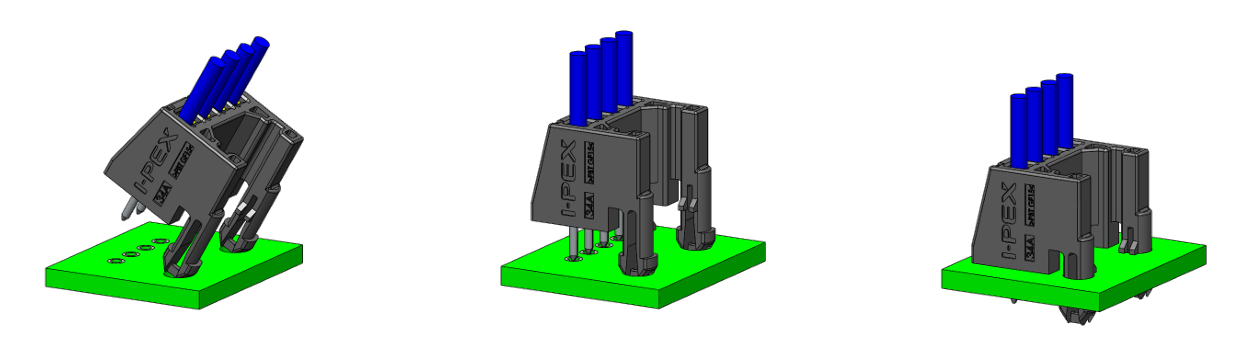

外殼上的定位凸台將端子引導至 PCB 通孔
|
1. 安裝位置由定位凸台決定 |
2. 引導端子到PCN通孔 |
3. 將連接器插入PCB |
|
||
連接可靠性高
| 定位在外殼上的凸起結構，可提高振動性能 | 圓週上覆蓋有鍍錫，具有高度可焊性 | ||
 |
 |
全鍍錫 |
|
 |
|||
透過水平和垂直變化的廣泛可選範圍來提高設計靈活性
| Contact Pitch | 2.5 mm
|
| Mating Type / Direction | Through-Hole DIP, Vertical
|
| Height | 8.4 mm max.
|
| Available Pin Count | Signal: 2, 3, 4, 5, 6, 7, 8, 9, 10 |
| Width | 1.5 + (2.5 x pin count) mm
|
| Contact Type | signal pins only
|
| Operating Temperature | |
| Cable Size (Discrete) | AWG 22 (*)* (Insulation Diameter 1.67 mm max.)
|
| Current Rating | |
| Other Features | Through Hole MountingHigh Heat ResistantHigh Vibration Resistant
|
IARPB (Vertical Type) RECOMMENDED PART NUMBERS
| Part Number Description | Part Number | Weight (mg) |
| IARPB VERTICAL housing 2pin | V0145-91002-01 | 390 |
| IARPB VERTICAL housing 3pin | V0145-91003-01 | 440 |
| IARPB VERTICAL housing 4pin | V0145-91004-01 | 500 |
| IARPB VERTICAL housing 5pin | V0145-91005-01 | 560 |
| IARPB VERTICAL housing 6pin | V0145-91006-01 | 630 |
| IARPB VERTICAL housing 7pin | V0145-91007-01 | 670 |
| IARPB VERTICAL housing 8pin | V0145-91008-01 | 730 |
| IARPB VERTICAL housing 9pin | V0145-91009-01 | 790 |
| IARPB VERTICAL housing 10pin | V0145-91010-01 | 840 |
IARPB (Vertical Type) ACCESSORIES PART NUMBERS
| Part Number Description | Part Number | Weight (mg) | Note |
| IARPB VERTICAL releasing JIG for terminal | 91694-0001 | 34845 | |
| IARPB jumper wire Vertical terminal L=100mm | 91686-000B-01 | 497 | |
| IARPB jumper wire Vertical terminal L=200mm | 91686-000B-02 | 937 | |
| IARPB jumper wire Vertical terminal L=300mm | 91686-000B-03 | 1373 |
