MHF® 4L LK

適用於 MHF® 4/4L 板端的高頻機械鎖定解決方案，支援最高 12 GHz，射頻連接器最大嵌合高度為 2.0 mm

    連續衝擊和震動的理想解決方案

    MHF® 4L 公座自帶鎖扣結構

    此插頭連接器與 MHF® 4 和 MHF® 4L 配接。
    *MHF 4     *MHF 4L

*有關 MHF® 4L 系列的一般資訊，請參閱 MHF® 4L。
*概要請參考「鎖定功能」影片，操作方式請參考「如何嵌合和解除/窄間距」影片。
Mated Height:
2.0 mm max.
Operating Temperature:
-40 to 90℃ (233 to 363 K)
Cable Size (Micro-Coaxial):
AWG 30 O.D. 1.37 mm

下載

連續衝擊和震動的理想解決方案

Ideal for continuous shock and vibration applications

MHF® 4L 公座自帶鎖扣結構

Patented locking system for MHF® 4L Plug

此插頭連接器與 MHF® 4 和 MHF® 4L 配接。
*MHF 4     *MHF 4L




 MHF_4L_Fab_3
Product name
MHF® 4L LK
MHF® 4L
MHF® 4L
MHF® 4L
Lock
With Lock
Without Lock
Without Lock
Without Lock
Mating Height
2.0 mm max.
1.7 mm max.
1.4 mm max.
1.2 mm max.
Coaxial O.D.
(Center Conductor AWG)
1.37 mm
(AWG 30)
●
●


1.13 mm
(AWG 32)


●

0.95 mm
(AWG 33)


●

0.81 mm
(AWG 36)



●
0.64 mm
(AWG 36)



●
Receptacle
MHF® 4 receptacle (20449-001E-03), MHF® 4L receptacle (20579-001E)







Product Type
Coaxial RF Connector
Mated Height
2.0 mm max.
SMT Size
2.0 x 2.0 mm
Frequency Range Up to 12 GHz (Up to 12 GHz for MHF®4L receptacle, Up to 9 GHz for MHF®4 receptacle)
Operating Temperature
-40 to 90℃ (233 to 363 K)
Cable Size (Micro-Coaxial)
AWG 30 O.D. 1.37 mm
V.S.W.R (Plug)
DC to 3 GHz: 1.3 max.3 to 6 GHz: 1.4 max.6 to 9 GHz: 1.5 max.9 to 12 GHz: 1.6 max.
Applicable Standards (Reference Only)
5G sub6Wi-FiLTE / LTE-AdvancedLPWABluetoothGPS
Full EMI Shielding (ZenShield®)
No
Mechanical Lock
Yes
VSWR (Harness only) DC ~ 3 GHz : 1.3 max.
3 ~ 6 GHz : 1.4 max.
6 ~ 9 GHz : 1.5 max.
9 ~ 12 GHz : 1.6 max.

推薦料號

若清單中查詢不到您要找的料號，請使用調查表詢問。
*MHF 4L LK僅以MHF 4L LK 線束的形式銷售
 請指定線束組件規格（單端或雙端、電纜尺寸、長度、顏色）。



MHF 4L LK RECOMMENDED PART NUMBERS

Part Number Description Part Number Weight (mg) Note
MHF 4L LK harness OD=1.37mm Offered as harness only - *see note below
MHF 4L receptacle 20579-001E 8.48 　

*The MHF 4L LK is offered as our MHF 4L LK harness assembly only.
  Please specify harness assembly specification (single-end or double-ended, cable size, length, color).



MHF 4L LK SAMPLE HARNESS FOR EVALUATION PART NUMBERS

MHF 4L LK

Part Number Description Part Number Weight (mg)
MHF 4L LK-4L LK harness OD=1.37mm L=100mm 8-23-0110 740
MHF 4L LK-4L LK harness OD=1.37mm L=200mm 8-21-0044 630
MHF 4L LK-4L LK harness OD=1.37mm L=300mm 8-26-0054 1424.8
MHF 4L LK-4L LK harness OD=1.37mm L=400mm 8-26-0055 1854.8
MHF 4L LK-4L LK harness OD=1.37mm L=500mm 8-23-0111 700



MHF 4L LK SAMPLE HARNESS FOR EVALUATION PART NUMBERS

MHF 4L LK-4L LK OD1.37MM 100MM Type-2

Part Number Description Part Number Weight (mg)
MHF 4L LK-4L LK harness OD=1.37mm L=100mm 180 degree orientation 8-25-0978 564
MHF 4L LK-4L LK harness OD=1.37mm L=200mm 180 degree orientation 8-25-0979 994
MHF 4L LK-4L LK harness OD=1.37mm L=300mm 180 degree orientation 8-25-0980 1424.8
MHF 4L LK-4L LK harness OD=1.37mm L=400mm 180 degree orientation 8-25-0981 1854.8
MHF 4L LK-4L LK harness OD=1.37mm L=500mm 180 degree orientation 8-25-0982 2284.8



其他料號
請注意:此清單可能包含了暫時還沒有可用樣品的產品和不再銷售的型號。
如您有新的詢價，請參考上述推薦的料號。



MHF 4L LK OTHER PART NUMBERS

Part Number Description Part Number Weight (mg) Note
MHF 4 receptacle 20449-001E-03 4.54 　
MHF 4 receptacle thick plating type 20449-001E 4.54 　

MHF 4L LK ACCESSORIES PART NUMBERS

Part Number Description Part Number Weight (mg) Image
MHF 4/4L/4L LK SMA adapter for plug electrical-performance-check 90449-001 2571.2

For_Plug_Voltage_MHF_4&4L&4L_LK
MHF 4/4L/4L LK adapter for plug voltage-check 90449-003-01 680

For voltage check
MHF 4/4L/4L LK SMA adapter for receptacle electrical-performance-check 90449-002 1685

For electrical performance check
MHF 4/4L/4L LK SMA adapter for receptacle high-cycle 90698-0001 7170

Probe
MHF series SMA adapter for receptacle high-cycle narrow-pitch cable L=100mm 90577-0100 4503.2

Adaptor cable (Attach to probe)
MHF series SMA adapter for receptacle high-cycle narrow-pitch cable L=200mm 90577-0200 5358.9
MHF series SMA adapter for receptacle high-cycle narrow-pitch cable L=350mm 90577-0350 6571
MHF series SMA adapter for receptacle high-cycle narrow-pitch cable L=750mm 90577-0750 9769.8
MHF 4/4L/4L LK SMA adapter for receptacle high-cycle probe 90576-0001 1458.1

Probe
MHF series SMA adapter for receptacle high-cycle detachable base 90684-0001 15104.1

MHF series SMA adapter for receptacle high-cycle detachable base
MHF 4/4L/4L LK SMA adapter for receptacle high-cycle detachable probe 90683-0001 1822.3

Probe

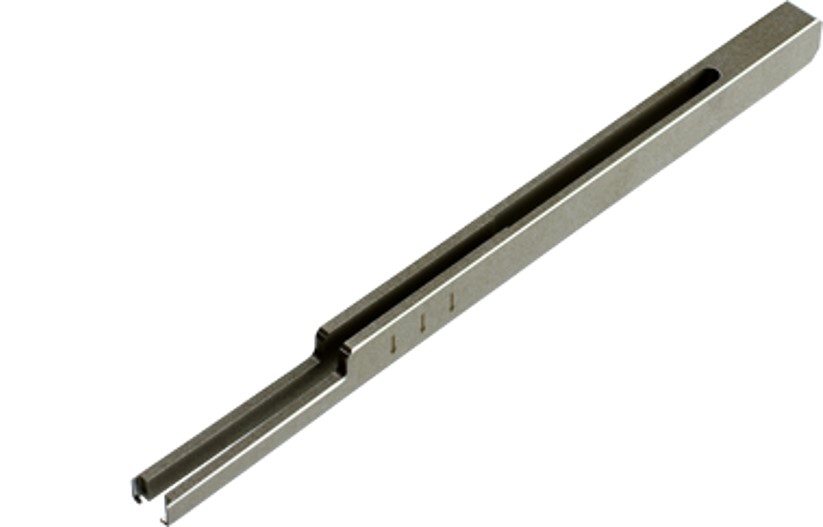

MHF 4L insertion/extraction tweezer 91166-0001 24580

MHF_4L_LK_Insertion_Extraction_Tweezer
MHF 4L insertion/extraction tweezer narrow-pitch 91493-0001 3560

MHF_4L_LK_Insertion&ExtractionTweezer_Narrow-pitch



SI Test Board with 2.92mm Adapter

 Part Number Description Part Number Weight (mg) Image
SI Test Board for MHF 4L 91602-001B-001 18066

MHF_4L_SI_TB-859_Test_Board_(C)

Main Board

MHF_4L_SI_TB-859_THRU_Board_(C)
Thru Board



Locking/Unlocking and Insertion/Extraction tweezer to handle MHF® 4L LK

Hand Tools to operate locking/unlocking and insertion/extraction.

Unlocking, Extraction tweezer Narrow Pitch, Locking/Unlocking, Extraction tweezer
MHF_I_LK_Extraction_Tweezer

Unlock the lock and remove it while holding the plug.

 MHF_I_LK_Extraction_Narrow_Pitch

The narrow-pitch design enables unlocking as well as insertion and removal, making it suitable for work in confined spaces.



Adapters for plugs and receptacles

For plug inspection, Electrical Performance Check and Voltage/Continuity Check tools are provided.
Receptacle inspection tools, on the other hand, support Electrical performance check only.
The lineup includes various types to suit different applications, such as Standard series, High Cycle types with different durability ratings, and narrow-pitch types that enable operation on high-density PCB layouts.

Standard series High Cycle Series
Standard type Narrow Pitch type Detachable type
Durability: 500 Durability: 10,000 Durability: 10,000 (Probe), 100 (Cable) Durability: 10,000 (Probe), 200,000 (Base)
MHF_I&_LK_Rece_Standard

Since the receptacle and the adapter are manually mated, the durability cycles are limited to 500. This type is best suited for inspection in small scale production environments, such as laboratories.

 MHF_I&_LK_Rece_High_Cycle_Standard

The Standard type connects directly from the probe to the measuring instrument.

 MHF_I&_LK_Rece_High_Cycle_Narrow

The Narrow pitch type is designed with a tight pitch, allowing multiple probes to be aligned and measured simultaneously.

 MHF_I&_LK_Rece_High_Cycle_Detachable

The Detachable type allows the adapter and probe to be removed and replaced. The base adapter is compatible with all series.



SI Test board for signal integrity performance measurement

Signal Integrity testing, measures and analyzes the extent to which high-speed signals maintain their integrity when transmitted through a connector.

Signal Integrity Test Board
