SX-M2
屏蔽型 M.2 連接器 (B-key) 符合 M.2 規範

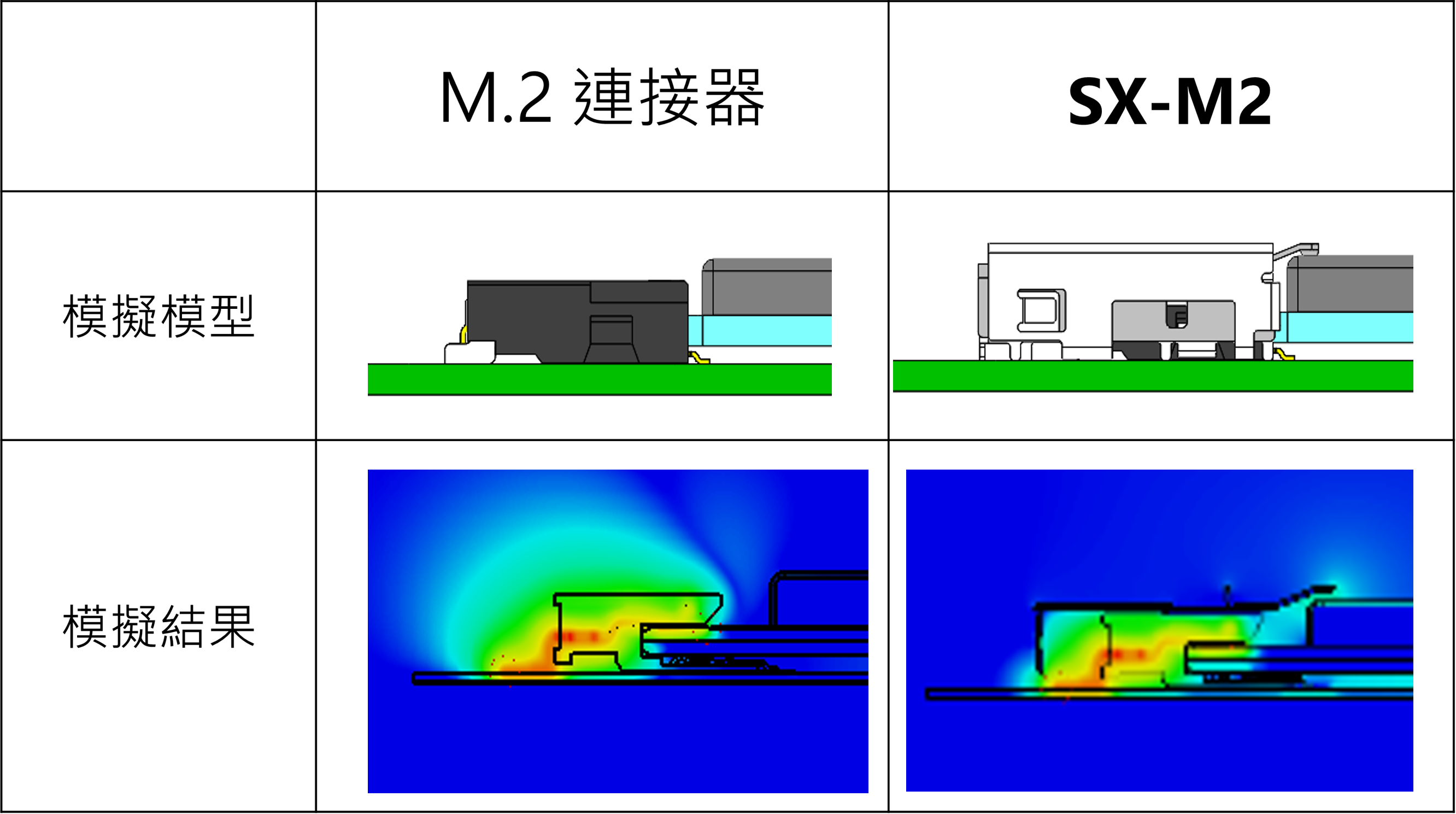

M.2 連接器採用強化型屏蔽結構，可有效抑制 EMI
可對接點安裝區域進行目視檢查
符合 M.2 規範的訊號完整性性能
Contact Pitch:
0.5 mm
Mating Type / Direction:
Board-in-Horizontal
Height:
Nom. 3.05 mm
下載
-
3D Models
-
STEP
-
IGES
-
-
Specs & Test Reports
-
PCB/FPC Data
-
Symbols(腳位圖)和Footprints(封裝圖)
-
-
-
操作手冊

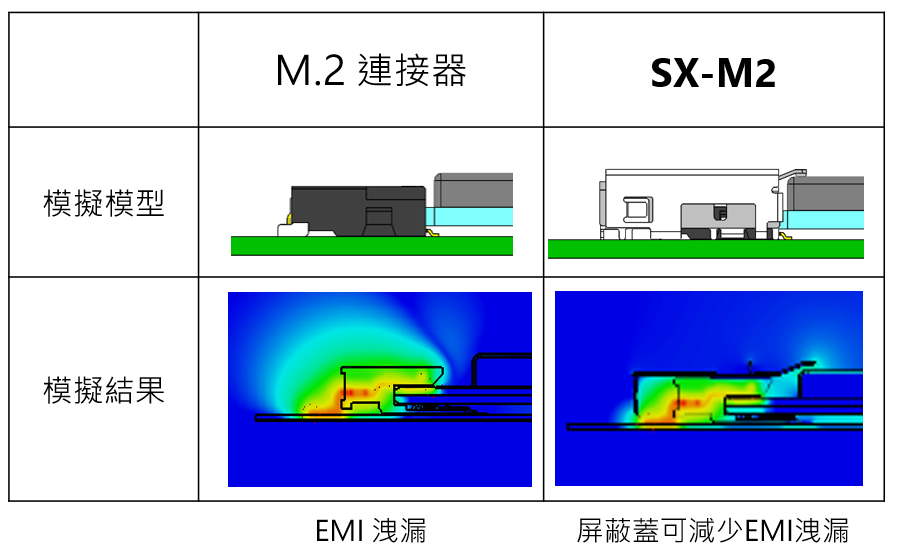

M.2 連接器採用強化型屏蔽結構，可有效抑制 EMI
 |
 |
可對接點安裝區域進行目視檢查
|
並提供 EMI 防護 |
符合 M.2 規範的訊號完整性性能
| Product Type | Card Edge
|
| Contact Pitch | 0.5 mm
|
| Mating Type / Direction | Board-in-Horizontal
|
| Height | Nom. 3.05 mm
|
| Available Pin Count | Signal: 67 |
| Width | 24.1 mm
|
| Operating Temperature | |
| Current Rating | |
| Applicable Standards (Reference Only) | Compliant with the PCI Express® M.2 Specification defined by PCI-SIG®
|
| Full EMI Shielding (ZenShield®) | Yes
|
| Number of contacts | 67 pin |
| Amperage | 0.5 A AC/DC (per contact) |
| Voltage | 35 V AC (per contact) |
SX-M2 RECOMMENDED PART NUMBERS
| Part Number Description | Part Number | Weight (mg) | Note |
| SX-M2 M.2 connector with shield assembly 67pin | 21065-067E-01 | 932 |
