As computing, networking, industrial, and embedded systems continue to evolve, designers face increasing challenges in maintaining signal integrity and electromagnetic compatibility (EMC) in compact, highly integrated products.

M.2 modules are widely used to integrate storage, communication, and expansion functions into modern electronic systems. However, as high-speed components are placed closer together, unwanted electromagnetic emissions can impact overall system performance and regulatory compliance.

The I-PEX SX-M2 Series is a shielded B-Key M.2 connector solution designed to reduce electromagnetic emissions at the interconnect level while maintaining excellent signal transmission characteristics. Its unique shield shell structure and slide-cover mechanism help suppress EMI around the connector, improving EMC performance without affecting standard M.2 compatibility.

By integrating EMI suppression directly into the connector, SX-M2 provides greater design flexibility and supports reliable operation across a wide range of applications.

The growth of data-intensive applications, edge computing, artificial intelligence, and connected devices is driving demand for higher-speed processing, storage, and wireless connectivity.

At the same time, electronic products continue to become smaller and more integrated, placing high-speed modules, processors, and wireless devices in close proximity. This increases the risk of electromagnetic interference and makes EMC performance a critical system-level requirement.

As a result, designers are seeking solutions that help control EMI early in the design process while maintaining compact system architectures and high-performance operation.


As system integration increases, designers must address several EMC-related challenges that can affect product performance and compliance.

Common-Mode Noise Generation
Signal imbalance caused by impedance discontinuities or interconnect structures can generate common-mode currents, which are a major source of radiated emissions.

Electromagnetic Leakage from Connector Structures
Openings and gaps within connector structures can allow electromagnetic energy to escape, contributing to increased EMI.

Grounding and Return Path Discontinuities
Inefficient return current paths can increase radiation and degrade signal quality. Effective grounding is essential for stable high-speed performance.

Electromagnetic Coupling Between Adjacent Components
Noise generated by nearby modules can couple into adjacent circuits, potentially affecting communication performance, signal integrity, and system reliability.


The SX-M2 Series is a shielded M.2 connector solution designed to improve electromagnetic compatibility while maintaining full compatibility with the standard M.2 interface. By integrating EMI suppression features directly into the connector, SX-M2 helps simplify system design, optimize space utilization, and improve overall system reliability.

Fully Integrated Shielded Design

A metallic shield shell surrounds the connector and works together with a movable slide cover to reduce electromagnetic leakage around the M.2 interface. Once the module is inserted and the slide cover is closed, the shielding structure becomes effective automatically without requiring additional tapes, brackets, or external shielding components.

Benefits
•    Improved EMI performance at the connector level
•    Reduced need for secondary shielding materials
•    Simplified system design and assembly process
•    More efficient utilization of PCB and system space

Enhanced Grounding Structure

The shield shell directly contacts the M.2 module ground pattern, creating a low-impedance return path that helps suppress unwanted noise propagation and improve electromagnetic compatibility.

Benefits
•    Reduced radiated emissions
•    Improved noise containment
•    Enhanced system-level EMC performance
•    More stable operation in densely integrated systems

Manufacturing-Friendly Design

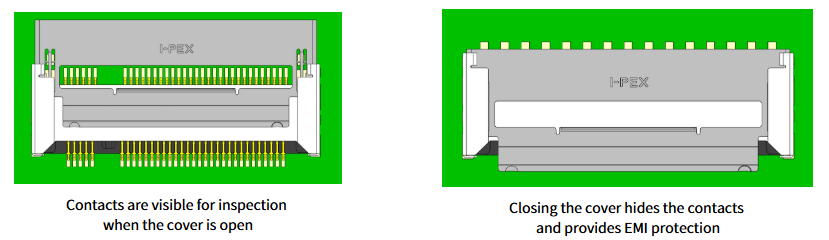

Despite its shielding structure, SX-M2 maintains visibility for Automated Optical Inspection (AOI), enabling reliable solder joint inspection during production.

Benefits
•    Supports manufacturing quality control
•    Improves inspection reliability
•    Reduces production risk and process variation

Standard M.2 Compatibility (B-Key)

SX-M2 preserves the electrical and mechanical compatibility of the standard 67-position M.2 connector, allowing implementation within existing system architectures without significant redesign.

Benefits
•    Easy adoption in existing platforms
•    Minimal impact on system architecture
•    Faster development cycles
•    Lower implementation cost

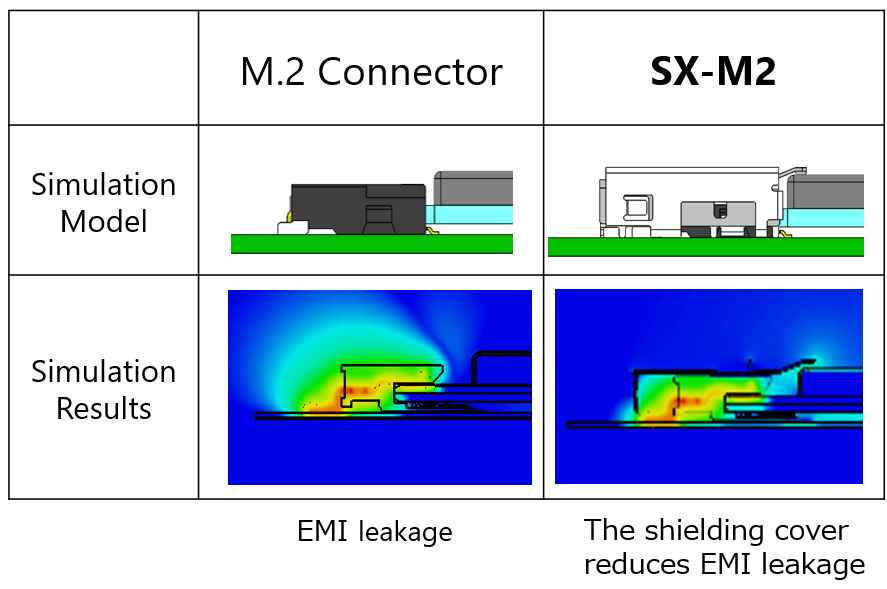

To evaluate shielding effectiveness, 3D electromagnetic simulations and radiated noise analyses were performed, comparing the SX-M2 connector against a conventional M.2 connector.

Simulation Condition
   Simulation Software : CST studio suite 2024 SP5
   Frequency Setting: 2.4 GHz, 5 GHz, 6 GHz

Simulation Results

Simulation results demonstrated a measurable reduction in radiated energy around the connector across the evaluated frequency range.

Compared with conventional M.2 connectors, the SX-M2 design significantly reduced the concentration of electromagnetic fields around the connector area. These results confirm the effectiveness of the integrated shield shell and slide-cover structure in containing electromagnetic emissions and limiting electromagnetic leakage.

The analysis also showed a reduction in radiated hot spots around the connector opening, contributing to improved electromagnetic compatibility and increased design margins at the system level. By reducing electromagnetic emissions at the interconnect, SX-M2 helps support more reliable operation in densely integrated electronic systems.

Adding EMI mitigation structures often raises concerns about degradation of high-speed signal performance. However, SX-M2 has been designed to maintain the transmission characteristics required for modern high-speed interfaces.

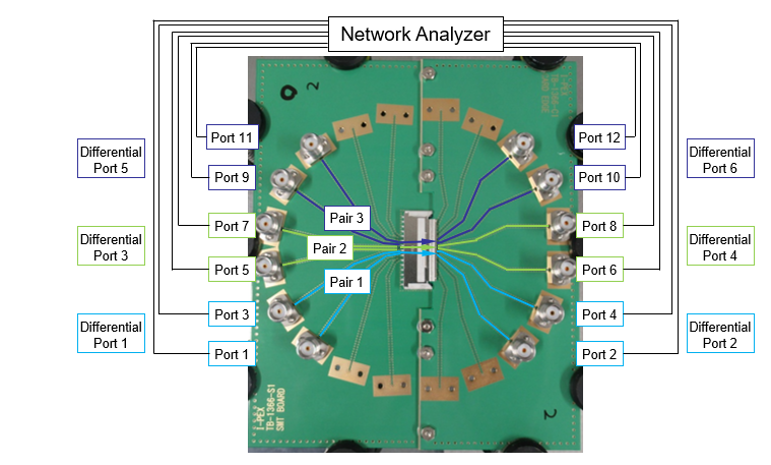

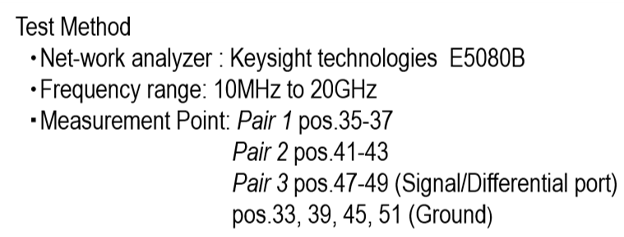

The following performance parameters were evaluated:
•    Insertion Loss
•    Return Loss
•    Near-End Crosstalk (NEXT)
•    Far-End Crosstalk (FEXT)

SI Results

Testing verified that the SX-M2 shielding structure delivers enhanced EMI suppression while preserving signal integrity performance.

The results indicate that effective EMI mitigation can be implemented directly at the connector level without introducing adverse effects on signal transmission. This enables improved system-level EMC performance without the traditional trade-off between electrical performance and EMI reduction.

By incorporating SX-M2 into electronic systems, designers can improve electromagnetic compatibility while simplifying system integration and reducing development risk.

Reduced EMC Certification Risk
By suppressing electromagnetic emissions at the connector level, SX-M2 helps reduce the likelihood of EMC compliance issues during product development and qualification, minimizing the risk of costly redesigns and project delays.

Improved Coexistence of Electronic Subsystems
Reducing unwanted electromagnetic radiation helps minimize interactions between neighboring components and subsystems, supporting more stable operation and overall system reliability in densely integrated designs.

Reduced Dependence on Additional Shielding Components
SX-M2 can reduce the need for supplemental shielding enclosures, conductive gaskets, shielding tapes, and other EMI countermeasures. This helps lower component count, simplify assembly, and streamline system design.

Greater Design and Layout Flexibility
Enhanced EMI performance provides designers with greater flexibility when placing modules and other electronic components within compact products, enabling more efficient use of available space.

As electronic devices become smaller and more integrated, controlling electromagnetic interference (EMI) is increasingly important.

Conventional M.2 connectors can be a source of radiated emissions that impact EMC performance. The I-PEX SX-M2 connector addresses this issue with its unique Shield Shell and Slide Cover design, which helps suppress EMI while maintaining excellent signal integrity.

Designed for B-Key M.2 applications, SX-M2 remains fully compatible with standard M.2 interfaces and provides built-in EMI suppression without requiring additional shielding components. This allows easy integration into existing system designs while helping improve EMC performance.

By combining EMI suppression, signal integrity, and standard M.2 compatibility, SX-M2 provides a practical solution for a wide range of B-Key M.2 applications. It helps simplify system design, improve EMC performance, and support reliable operation across computing, networking, industrial, and communication equipment.

By reducing EMI at the connector level, SX-M2 minimizes the need for additional countermeasures and offers a simple, effective solution for next-generation M.2 platforms.
