ISH® HORIZONTAL HYBRID

ISH Hybrid Product Image
High heat and vibration resistant connector with hybrid (signal + power) terminals

    High heat and strong vibration resistance for high-reliability applications

    Unique embedded spring terminals for long-term stable electrical connection

    USCAR-2 compliant options available, designed for automotive and
    industrial grade applications
Contact Pitch:
2.0 (mm)
Mating Direction:
Horizontal-Hybrid
Mated Height:
13.6 max. (mm)
Available Pin Count:
20 28
Discrete Cable:
AWG 20 O.D. 1.9 mm AWG 22 O.D. 1.6 mm
Current rating:
4.5 A 7 A

Downloads

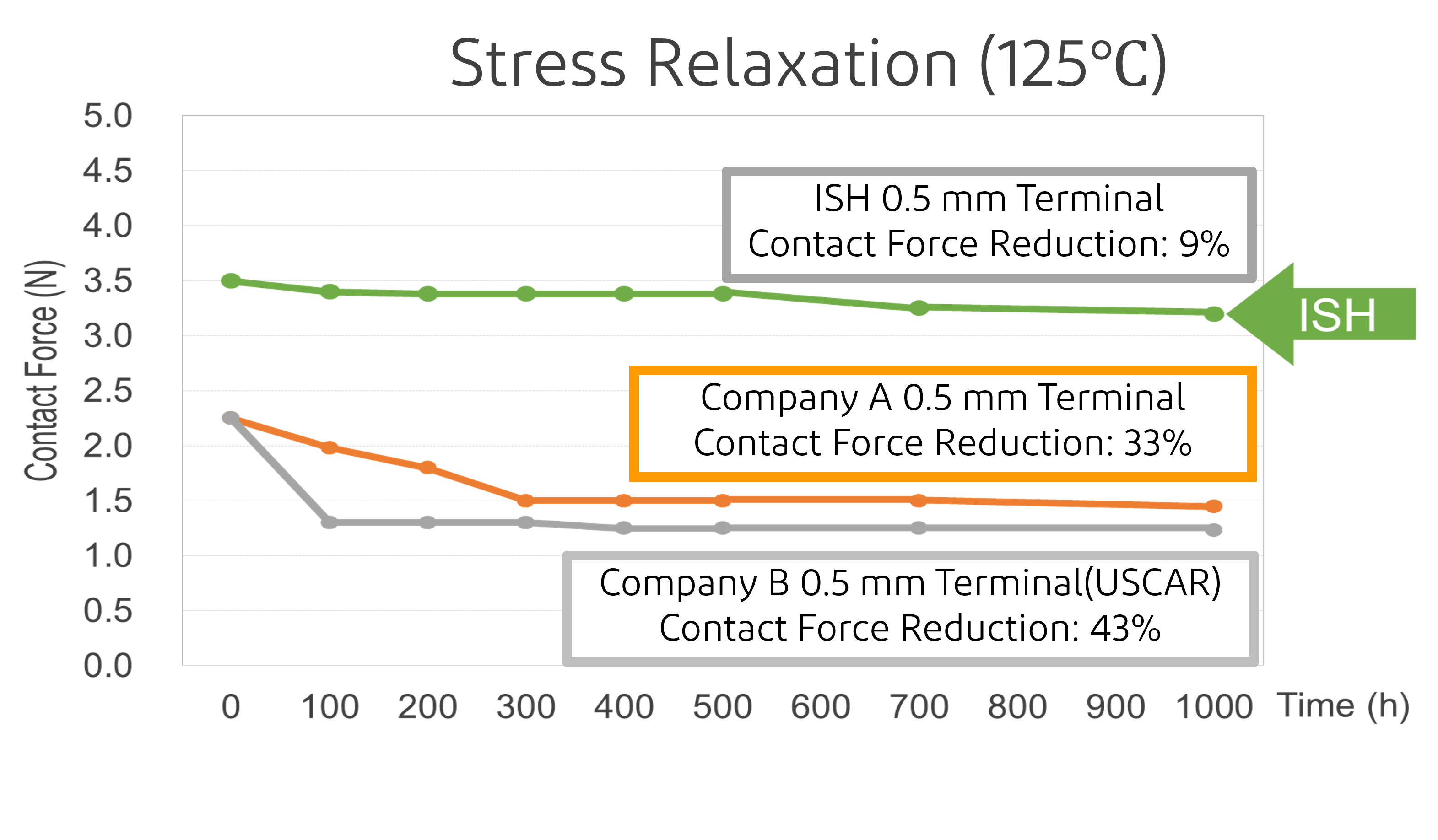

High heat and strong vibration resistance for high-reliability applications
ISH Horizontal Type Hybrid FAB1 E

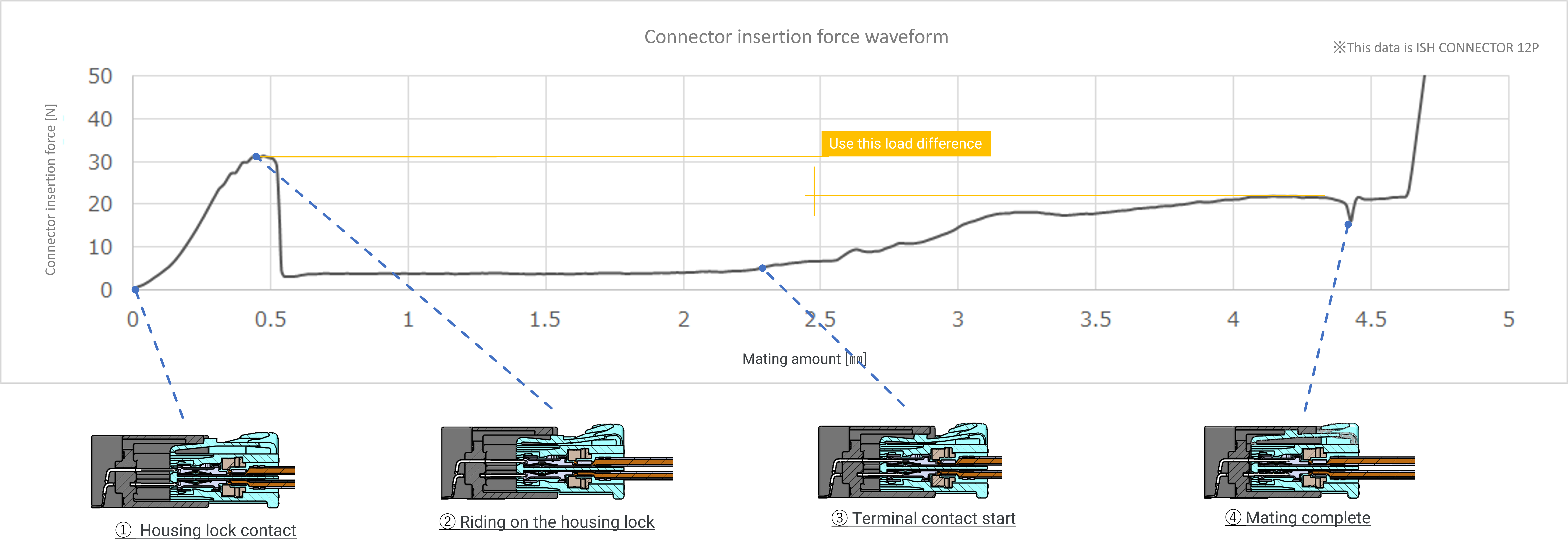

Unique embedded spring terminals for long-term stable electrical connection
ISH Horizontal Type Hybrid FAB2 E

USCAR-2 compliant options available, designed for automotive and
industrial grade applications

For Automotive

For Non-Automotive
For Automotive For Non-Automotive
  • Headlamp & other automotive lamps
  • Inverter & DC/DC converter
  • Battery control module
  • Front/Rear view camera control module
  • Instrument cluster
  • Offroad vehicles (ATV/UTVs, QUADS, Tricycles)
  • Trucks and construction machineries (Excavators, Loaders)
  • Factory automation equipment

For applications that require compliance with USCAR-2

Please refer to "part number" tab above for USCAR-2 compliant part numbers.



Product Type
Discrete wire
Contact Pitch
2.0 (mm)
Mating Direction
Horizontal-Hybrid
Mated Height
13.6 max. (mm)
Available Pin Counts
20 28
Depth
25.3 (mm)
Width Formula
13.0+1.0*pin
Discrete Cable
AWG 20 O.D. 1.9 mm AWG 22 O.D. 1.6 mm
Shielded FPC / FFC
No
Current rating
4.5 A 7 A
Full EMI Shielding (ZenShield®)
No
Mechanical lock
Yes
Mated Height (max.) 13.60 mm
Automotive Standards USCAR-2 (20 pin tested. Rear cover needed to satisfy specification. Except for Male power terminal retention force specification)
Current rating (detail) 4.5 A/pin (signal), 7 A/pin (power)

RECOMMENDED PART NUMBERS

Please contact us if you cannot find the needed part number(s) from the list below.



ISH (Horizontal Type-Hybrid) RECOMMENDED PART NUMBERS

Part Number Description Part Number Weight (mg) Note
ISH HORIZONTAL TYPE HYBRID male connector 20pin double keyA V0123-020E-01 4825.03 USCAR‐2(**)
ISH HORIZONTAL TYPE HYBRID male connector 28pin double V0123-028E-01 5512.36 　
ISH HORIZONTAL TYPE HYBRID female housing 20pin double keyA V0124-020B-01 3444.3 USCAR‐2(**)
ISH HORIZONTAL TYPE HYBRID female housing 28pin double V0124-028B-02 4360 　
ISH HYBRID female rear cover 20pin V0124-94020-01 1400 　
ISH female terminal 0.5mm SL VT009-02 92.3 Signal Terminal
ISH female terminal 1.5mm SL VT011-02 170.77 Power Terminal

Note (**): Rear Cover is needed to be complied with USCAR-2. (Except for retention force of male power terminals)
Other Part Numbers
Please note: This list potentially includes products without available samples and end-of-life items.
For new inquiries, please reference the recommended part numbers listed above.



OTHER ISH (Horizontal Type-Hybrid) PART NUMBERS

Part Number Description Part Number Weight (mg) Note
ISH HORIZONTAL TYPE HYBRID male terminal 20pin double keyB V0123-020E-11 4825.03 USCAR‐2(**)
ISH HORIZONTAL TYPE HYBRID female housing 20pin double keyB V0124-020B-11 3444.3 USCAR‐2(**)
